A Guide to CNC Routers: The Basics and What You Need to Know

Introduction

CNC router is a computer controlled device for making precise and similar parts. For signage on wood, timber or acrylic, this technology can be used.

CNC machinery can be used simply at a garage or at big manufacturing facilities.

Computer Numerical Control technology helped human to achieve goals can’t reach without it. In fact CNC technology built for future problems.

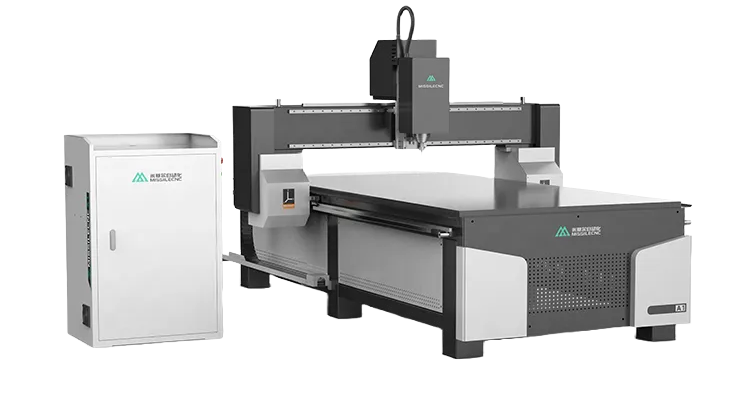

1	Model	SH-1325
2	X/Y/Z Axis working size	X=1300mm, Y=2500mm, Z=160mm
3	Feeding height	200mm
4	Max running speed	25m/min
5	Max working speed	12m/min
6	X/Y Axis transmission	Good Quality Helical Gear and rack 25mm
7	Z Axis transmission	Taiwan Ball screw
8	Guide rail	Taiwan HIWIN/PMI square guide rail 20mm
9	Working table	Vacuum absorption working table with 5.5KW vacuum pump, and aluminum T-slot combined
10	Spindle power	4.5KW water cooled spindle
11	Max spindle speed	24000rpm
12	Collet	ER20(2-13mm)
13	Inverter	Chinese Fuling Inverter 4.5KW
14	Control system	DSP control system (independent control cabinet)
15	Driver system	Leadshine hybrid servo motor, 4 pieces,
		Big power Leadshine hybrid servo driver, 4 pieces,
		Motor for Z axis with brake, to protect the head and the workpieces when power off suddenly.
16	Working voltage	380V, 50HZ/60HZ, 3 phase
17	Command	G code
18	Computer interface	USB port
19	Wiring cables	Shanghai Echu
20	Limit switch	Japan Omron
21	Software compatibility	Artcam, Type3, JDpaint, Ucancam, etc.(pirated software for free)
		Hundreds of designs will be given to you for free.
22	Dust protection	X & Y axis with dust-proof
23	With alarm light, for more safety
24	With lubricating system
25	With emergency stops on the gantry
26	Structure	Heavy duty bed, iron tube thickness 8mm
27	Gross weight	1300KGS
28	Packing	Plywood box for export
		packing size 2250(Width)*3400(Length)*1850mm(Height), about 14.15CBM
29	With Dust Collector (whole set)

What is a CNC Router & What are the Different Types?

CNC router is a computer numerical controlled machine mostly for 2D and planar parts manufacturing. Some samples can be made with this machine shown here

There are different designs on router machines. Simplest is a 2 axis planar CNC with Z axes up and down control or 2 1/2 axis CNC machine. When Z axis can be controlled simultaneously along with X and Y, the machine called 3 axis router.

One rotational axis in X or Y direction can be added to make cylindrical or 3D objects, The result would be a 4 axis CNC machine, which described in details here

for sculpting sometimes needed to have rotational movement in X and Z axes. The result is A and C axis which make the router 5 axis CNC machine

What’s the Difference Between Manual and Automatic Machining?

manual machining vs automatic machining!

In manual machining, the operator has to control every single machine movement to make the desired part. But in automatic machining like CNC the operator prepare the workpiece and tooling once per project and program the machine to process all operations. Would be a huge difference in mass production in terms of speed and product precision.

And even for low volume production of precise parts, still we rely on CNC technology because of the accuracy.

CNC Router Cost Considerations – How Much Do They Cost?

keywords: cost of a cnc machine, cost of a cnc router

Manual tool changing router which is able to process full 2400*1200 mm sheet would cost around A$14,000 delivered in Sydney

CNC machine with linear automatic tool changer would be around A$40,000 delivered in Sydney.
The carousel tool changing CNC with same size as mentioned above would cost around A$43,000 delivered in Sydney. Carousel tool changing would increase the production speed, because of faster changing time.
