4 axis CNC router

4 axis CNC router gives more flexibility to an artist for creating 3D objects, because some area in 3D shapes and rotary objects are not reachable with ordinary 3 axis machine. In fact an extension would be added to Y axes to reach the rotary axes area for 3D objects processing. As a result, this machine can be used for ordinary flat and 2D jobs with vacuum table, too.

Multi head 4 axis CNC router is also described here

3D design Software

With the recent developments in 3D design software like Carveco is very easy to generate G codes needed for any CNC router.

Applications

This machine can be used in signage like artistic columns, face generation and creative wooden staircases.

Technical Specifications of SH-1325Y

1	Model	SH-1325Y
2	X/Y/Z Axis working size	X=1600mm, Y=2500mm, Z=250mm
3	Rotary	Diameter 250mm, length 2500mm
4	Max running speed	25m/min
5	Max working speed	12m/min
6	X/Y Axis transmission	Good Quality Helical Gear and rack 25mm
7	Z Axis transmission	Taiwan Ball screw
8	Guide rail	Taiwan HIWIN/PMI square guide rail 20mm
9	Working table	Vacuum absorption working table with 5.5KW vacuum pump, and aluminum T-slot combined
10	Spindle power	7.5KW water-cooling spindle
11	Max spindle speed	24000rpm
12	Collet	ER32(2-22mm)
13	Inverter	Chinese Fuling 7.5KW
14	Control system	RichAuto DSP 4 axis control system (A18)
15	Driver system	Leadshine hybrid servo motor, 4 pieces, Big power Leadshine hybrid servo driver, 4 pieces, motor for Z axis with brake, to protect the head and the workpieces when power off suddenly.
16	Working voltage	380V, 50HZ, 3 phase
17	Command	G code
18	Computer interface	USB port
19	Limit switch	Japan Omron
20	Software compatibility	Artcam, Type3, JDpaint, Ucancam, etc.(pirated software for free, if need original ones, extra cost have to be charged.)
21	Dust-proof	X & Y axis with dust-proof
22	Tool sensor	With, higher precision, higher efficiency.
23	Alarm light	With, more safety
24	Emergency stops on the gantry	With, on the both right and left side of the gantry
25	Lubricating system	With
26	Mist coolant spray	With, for cooling the cutter bits when engraving aluminum, copper, etc.
27	Dust collector system	With whole set, including 3KW double-bag dust collector, with plastic tube, cover with brush.
28	Structure	Heavy duty bed, iron tube thickness 8mm
29	Gross weight	1850KGS
30	Packing	Plywood box for export packing size 2250(Width)*3530(Length)*2100mm(Height), about 16.68CBM

4 axis CNC router working videos

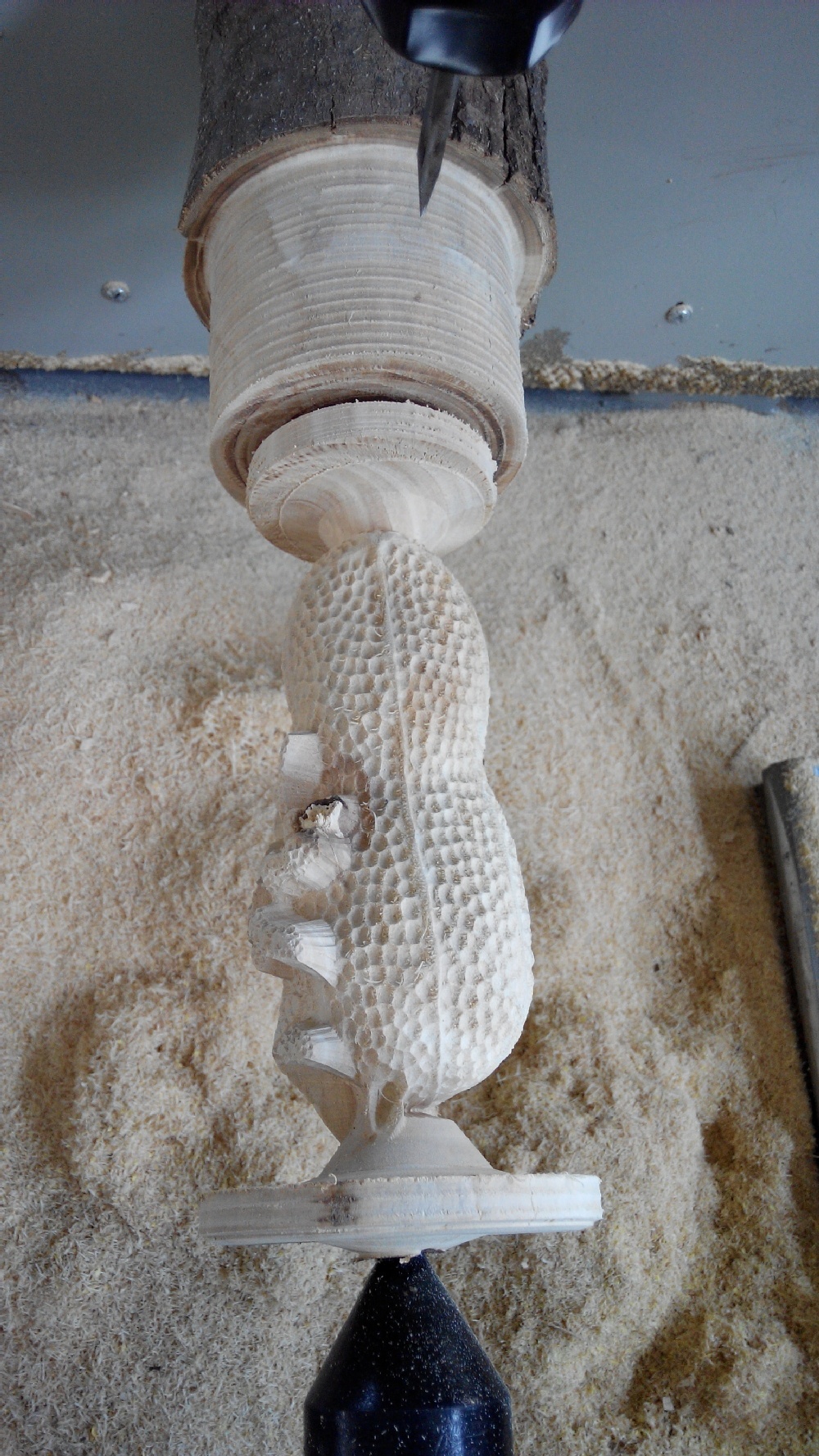

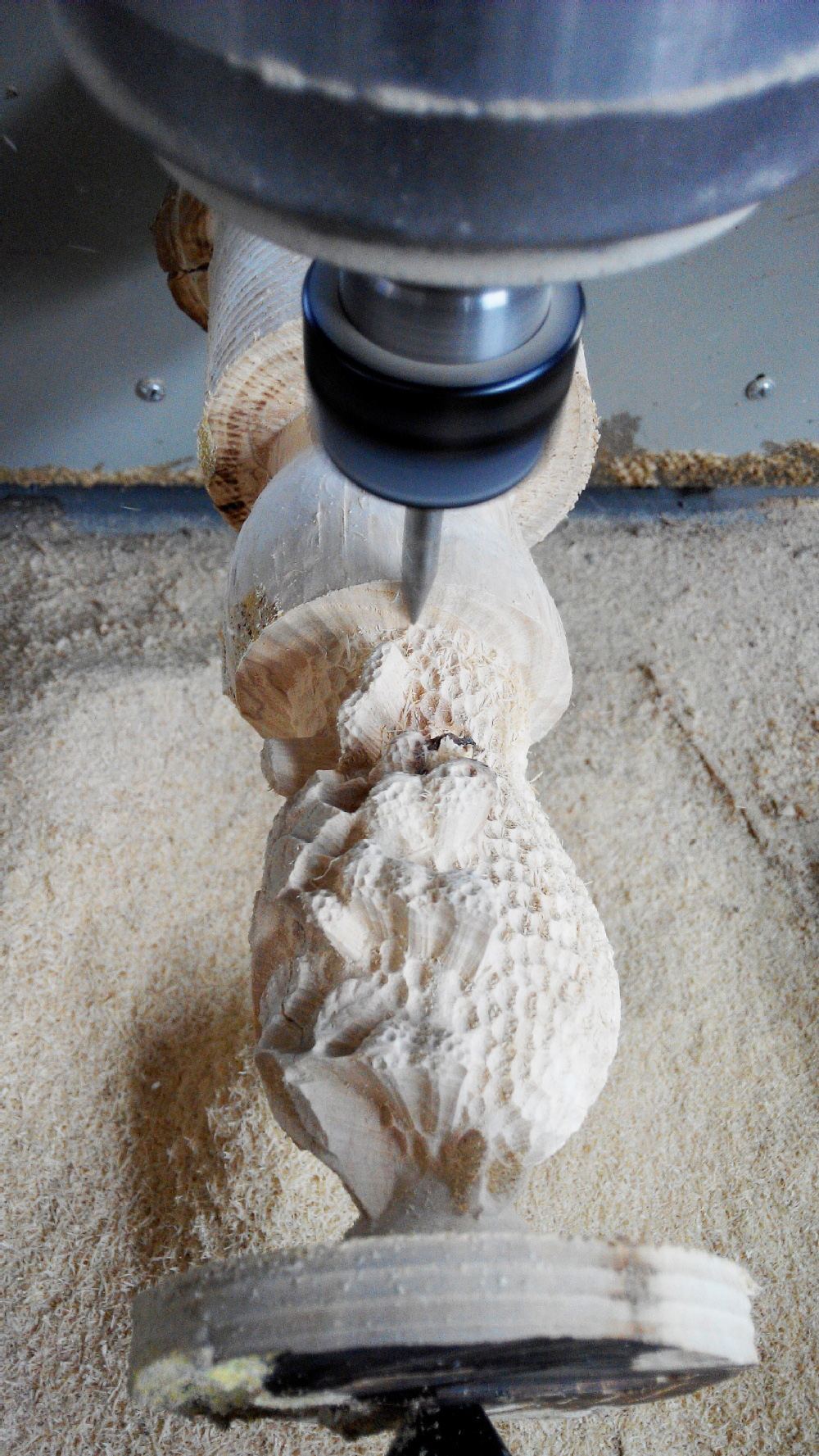

Rotary engraving samples
