Fiber laser cutter

Laser cutting CNC for sheet metals!

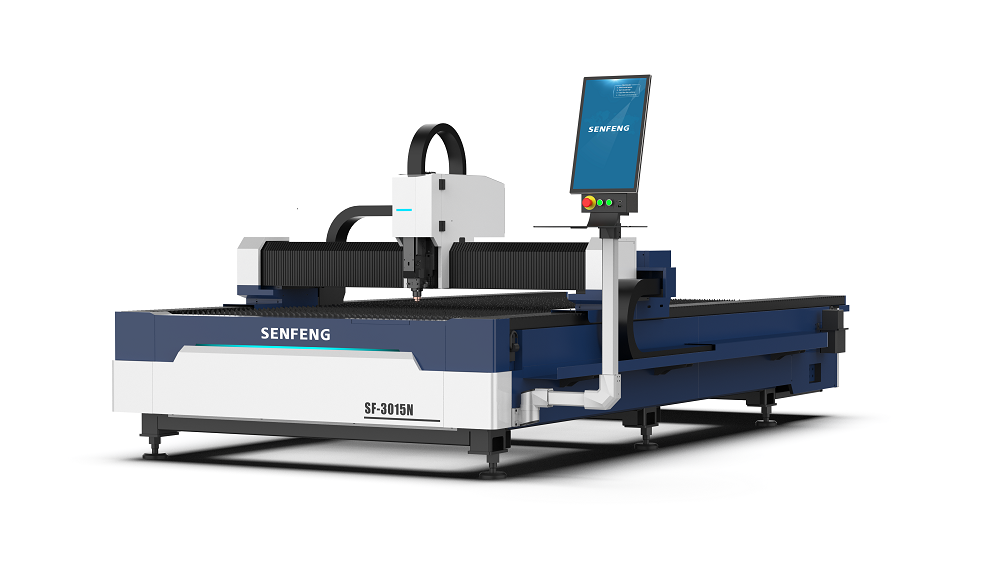

Fiber laser cutter is a CNC machine for metal sheet precise cutting. Mainly for stainless steel, galvanized, mild steel, aluminum and brass.
Laser welding machine and this fiber laser cutting, can possibly provide ideal equipment for precise sheet metal manufacturing.

Fiber laser cutter
Fiber laser cutter

Cutting capacity of a typical 3Kw fiber CNC machine

MaterialThicknessSpeedPowerGasPressureNozzleFocusHeight
Carbon1mm35m/min3000WN2/
Air
10bar1.5S0mm1mm
2mm20m/min10bar2.0S0mm0.5mm
2mm5.5m/min1200WO21.6bar1.0D+3mm0.8mm
3mm4m/min2000W0.6bar1.0D+4mm0.8mm
4mm3.5m/min2400W0.6bar1.0D+4mm0.8mm
5mm3.2m/min2400W0.6bar1.2D+4mm0.8mm
6mm2.7m/min3000W0.6bar1.2D+4mm0.8mm
8mm2.2m/min3000W0.6bar1.2D+4mm0.8mm
10mm1.5m/min3000W0.6bar1.2D+4mm0.8mm
12mm1m/min2400W0.6bar3.0D+4mm0.8mm
14mm0.9m/min2400W0.6bar3.0D+4mm0.8mm
16mm0.75m/min2400W0.6bar3.5D+4mm0.8mm
18mm0.65m/min2400W0.6bar4.0D+4mm0.8mm
20mm0.6m/min2400W0.6bar4.0D+4mm0.8mm
22mm0.55m/min2400W0.6bar4.0D+4mm0.8mm
Stainless1mm45m/min3000WN210bar1.5S00.8mm
2mm24m/min12bar2.0S00.5mm
3mm10m/min12bar2.5S-0.50.5mm
4mm6.5m/min14bar2.5S-1.50.5mm
5mm3.6m/min14bar3.0S-2.50.5mm
6mm2.7m/min14bar3.0S-30.5mm
8mm1.2m/min16bar3.5S-4.50.5mm
10mm0.8m/min3000WN216bar4.0S-60.5mm
Aluminum1mm30m/min3000WN212bar1.5S00.8mm
2mm18m/min12bar2.0S00.5mm
3mm8m/min14bar2.0S-10.5mm
4mm6m/min14bar2.5S-20.5mm
5mm3.2m/min16bar3.0S-30.5mm
6mm2m/min16bar3.0S-3.50.5mm
8mm0.9m/min16bar3.5S-40.5mm
Brass1mm28m/min3000WN212bar1.5S00.8mm
2mm15m/min12bar2.0S00.5mm
3mm6m/min14bar2.5S-10.5mm
4mm3m/min14bar3.0S-20.5mm
5mm2.2m/min14bar3.0S-2.50.5mm
6mm1.3m/min16bar3.0S-30.5mm

Remark :

  1. 1-2mm carbon steel is recommended to be cut with air or nitrogen, and cutting speed is also faster than oxygen, but burrs would be noticed on the edges.
  2. Due to different gas purity, plate impurity etc., the real cutting speed will be also different.
  3. The red mark is single sample test parameters, for large batch processing and good quality, thickness needs to be 1-2mm less.

Cutting capacity of a typical 6Kw fiber CNC machine

MaterialThicknessSpeedPowerGasPressureNozzleFocusHeight
Carbon1mm45m/min6000WN2/
Air
12bar1.5S0mm1mm
2mm25m/min12bar2.0S-1mm0.5mm
3mm14m/min14bar2.0S-1.5mm0.5mm
4mm8m/min14bar2.0S-2mm0.5mm
5mm6.4m/min16bar3.0S-2.5mm0.5mm
6mm5m/min16bar3.5S-3mm0.5mm
3mm3.6-4.2m/min2400WN20.6bar1.2E+3mm0.8mm
4mm3.3-3.8m/min2400W0.6bar1.2E+3mm0.8mm
5mm3-3.6m/min3000W0.6bar1.2E+3mm0.8mm
6mm2.7-3.2m/min3300W0.6bar1.2E+3mm0.8mm
8mm2.2-2.5m/min4200W0.6bar1.2E+3mm0.8mm
10mm2.0-2.3m/min5500W0.6bar1.2E+4mm0.8mm
12mm0.9-1m/min2200W0.6bar3.0D+2.5mm0.8mm
12mm1.9-2.1m/min6000W0.6bar1.2E+5mm0.8mm
14mm0.8-0.9m/min2200W0.6bar3.5D+2.5mm0.8mm
14mm1.4-1.7m/min6000W0.6bar1.4E+5mm1mm
16mm0.8-0.9m/min2200W0.6bar4.0D+2.5mm0.8mm
16mm1.2-1.4m/min6000W0.6bar1.4E+6mm1mm
18mm0.65-0.75m/min2200W0.6bar4.0D+2.5mm0.8mm
20mm0.6-0.7m/min2400W0.6bar4.0D+3mm0.8mm
22mm0.55-0.65m/min2400W0.6bar4.0D+3mm0.8mm
25mm0.5m/min2400W0.5bar5.0D+3mm1mm
Stainless1mm60m/min6000WN210bar1.5S0mm0.8mm
2mm30m/min12bar2.0S-1mm0.5mm
3mm18m/min12bar2.5S-1.5mm0.5mm
4mm12m/min14bar2.5S-2mm0.5mm
5mm8m/min14bar3.0S-2.5mm0.5mm
6mm5m/min15bar3.0S-3mm0.5mm
8mm3.8m/min15bar3.0S-4mm0.5mm
10mm2m/min15bar3.5S-6mm0.5mm
12mm1.2m/min16bar3.5S-7.5mm0.5mm
14mm1m/min16bar4.0S-9mm0.5mm
16mm0.6m/min18bar4.0S-10.5mm0.5mm
18mm0.5m/min20bar5.0S-11mm0.3mm
20mm0.3m/min10bar5.0S-12mm0.3mm
Aluminum1mm50m/min6000WN212bar1.5S0mm1mm
2mm25m/min12bar2.0S-1mm0.5mm
3mm16m/min14bar2.5S-1.5mm0.5mm
4mm10m/min14bar2.5S-2mm0.5mm
5mm6m/min14bar3.0S-3mm0.5mm
6mm4m/min16bar3.0S-3mm0.5mm
8mm2m/min16bar3.0S-4mm0.5mm
10mm1.2m/min18bar3.5S-4.5mm0.5mm
12mm0.7m/min18bar4.0S-5mm0.5mm
14mm0.5m/min18bar4.0S-5mm0.3mm
16mm0.4m/min20bar5.0S-8mm0.3mm
Brass1mm40m/min6000WN212bar1.5S0mm1mm
2mm20m/min12bar2.0S-1mm0.5mm
3mm14m/min14bar2.5S-1mm0.5mm
4mm9m/min14bar3.0S-1.5mm0.5mm
5mm5.5m/min14bar3.0S-2mm0.5mm
6mm3.8m/min16bar3.0S-2.5mm0.5mm
8mm1.8m/min16bar3.5S-3mm0.5mm
10mm1m/min16bar3.5S-3mm0.5mm
12mm0.7m/min18bar4.0S-4mm0.3mm

Remark :

  1. 1-6mm carbon steel is recommended to be cut with air or nitrogen, and cutting speed is also faster than oxygen, but burrs would be noticed on the edges.
  2. Due to different gas purity, plate impurity etc., the real cutting speed will be also different.
  3. The red mark is single sample test parameters, for large batch processing and good quality, thickness needs to be 1-2mm less.
XT G series fiber CNC
G series fiber CNC

G series parameters & configurations

●standard configuration, ○optional configuration, ×No configuration required

ItemItemXT-G1530XT-G2040XT-G2060XT-G2560
Basis inforamtionWorking area(mm)1530X30502000×40502000×60502500×6050
Table bearing (calculate as per limit cutting thickness)800KG1500Kg2100Kg2700Kg
dimension size(mm)8200*2240*215010420*3525*245014750*3525*245014670*4030*2450
Machine weight (varies with power)4500Kg7000Kg9800Kg10900Kg
Maximum exchange time of the platform25s30S35S35S
Maximum linkage speed150m/min150m/min150m/min150m/min
maximum acceleration1.5G1.5G1.5G1.2G
positional accuracy±0.03mm/m±0.03mm/m±0.03mm/m±0.03mm/m
repeated positioning accuracy±0.02mm/m±0.02mm/m±0.02mm/m±0.02mm/m
Power of the whole machine (without air compressor)Total power/current (with 6KW laser)48KVA/60A48KVA/60A48KVA/60A48KVA/60A
Total power/current (with 4KW laser)38KVA/45A38KVA/45A38KVA/45A38KVA/45A
Total power/current (with 3KW laser)33KVA/38A33KVA/38A33KVA/38A33KVA/38A
Total power/current (with 2KW laser)28KVA/32A28KVA/32A28KVA/32A28KVA/32A
Total power/current (with 1.5KW laser)25KVA/28A25KVA/28A25KVA/28A25KVA/28A
Cutting accuracy parameter
(1mm stainless steel)
φ30mm the roundness of a circle±0.1mm±0.1mm±0.1mm±0.1mm
□30mm the adjacent side dimensions difference±0.05mm±0.05mm±0.05mm±0.05mm
□190mm the adjacent side dimensions are difference±0.05mm±0.05mm±0.05mm±0.05mm
□190mm diagonal size difference±0.1mm±0.1mm±0.1mm±0.1mm
mechanical configurationBed structurePlate weldingPlate weldingPlate weldingPlate welding

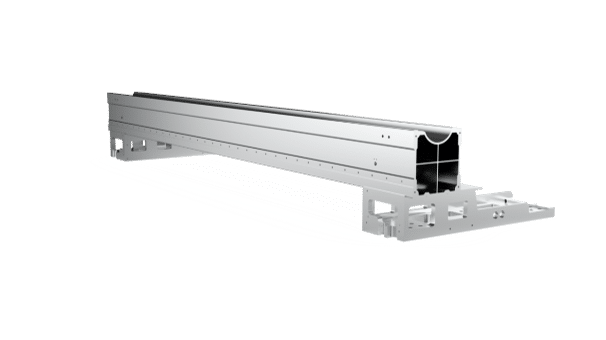

Beam constructionAluminum beamAluminum beamAluminum beamAluminum beam
Guide railTAIWAN LAAKTAIWAN LAAKTAIWAN LAAKTAIWAN LAAK
Rack&pinionTAIWAN T-WINTAIWAN T-WINTAIWAN T-WINTAIWAN T-WIN
Automatic lubrication function
enclosed body
Electric configurationServo motor and driverVEICHI high spped motor
(X:1.1KW Y:1.7KW Z:0.4KW)
VEICHI high spped motor
(X:1.1KW Y:1.7KW Z:0.4KW)
VEICHI high spped motor
(X:1.1KW Y:1.7KW Z:0.4KW)
VEICHI high spped motor
(X:1.1KW Y:1.7KW Z:0.4KW)
Speed reducerFRANCE MOTOREDUCERFRANCE MOTOREDUCERFRANCE MOTOREDUCERFRANCE MOTOREDUCER
main electric componentsFrance SchinerderFrance SchinerderFrance SchinerderFrance Schinerder
electric proportional valve●AVENTICS ED05(≤6KW not include Nitrogen proportional valve)●AVENTICS ED05(≤6KW not include Nitrogen proportional valve)●AVENTICS ED05(≤6KW not include Nitrogen proportional valve)●AVENTICS ED05(≤6KW not include Nitrogen proportional valve)
Oxygen proportional valve
Nitrogen proportional valve

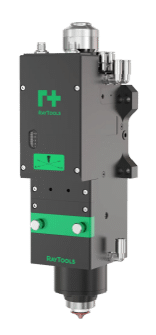

Optical configurationLaser cutting headBOCI BLT310(≤4000W)BOCI BLT310(≤4000W)BOCI BLT310(≤4000W)BOCI BLT310(≤4000W)
BOCI BLT421(6000W )BOCI BLT421(6000W )BOCI BLT421(6000W )BOCI BLT421(6000W )
Cutting head side-blowing function○(<6000W )
●(6000W)
○(<6000W )
●(6000W)
○(<6000W )
●(6000W)
○(<6000W )
●(6000W)
Auto focus functionauto focusauto focusauto focusauto focus
Operating system configurationController●FSCUT 2000E(≤4000W)
●FSCT 4000E(6000W)
●FSCUT 2000E(≤4000W)
●FSCT 4000E(6000W)
●FSCUT 2000E(≤4000W)
●FSCT 4000E(6000W)
●FSCUT 2000E(≤4000W)
●FSCT 4000E(6000W)
Nesting softare
Cutting library
Intelligent configurationScreen size24 inch24 inch24 inch24 inch
remote control handle
Auxiliary gas low pressure alarm function
Cutting gas automatic pressure regulation functionOxygenOxygenOxygenOxygen
○Nitrogen(value)○Nitrogen(value)○Nitrogen(value)○Nitrogen(value)
Safety configrationLaser abnormal alarm
Abnormal cutting alarm
Chiller abnormal alarm
Auxiliary configurationWater chilerXT LASER(S&A/HANLI)XT LASER(S&A/HANLI)XT LASER(S&A/HANLI)XT LASER(S&A/HANLI)
Exhaust fan●5.5KW+top fan●5.5KW+top fan●5.5KW+top fan●5.5KW+top fan
Optionsmoke filter
WIFI function
Air compressor
Stabilizer
Electric panel add AC
Separate electric panel extra AC
goggles
Nitrogen, oxygen pressure reducing valve
Floor board and expansion bolt
Container20GP/40HQ(40FR)(40FR+20GP)(40FR+40HQ)

How much space does it take?

Machine Bed 2.3*4.4*1.4 m
Control Cabinet0.6*0.5*1.1 m
Water Chiller0.92*0.78*1.1 m

Laser Generator

BrandOriginPowerCutting material
RaycusChina1000WThe best for: Stainless steel and Carbon steel

Cuting Head

BrandFocusOrigin
RaytoolsManual FocusShanghai

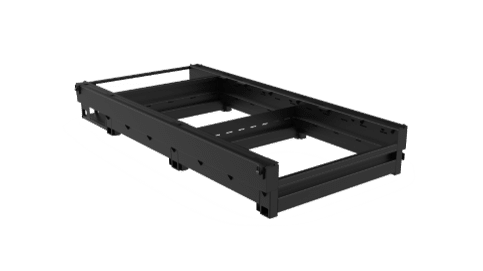

Machine Bed

BrandSizePowerTechnology
A3 die3m*1.5m1000W1. Steel machine bed
2. A3 die 600℃ heat treatment
3. Annealing, eliminates thermal stress.

Transmission system

NoNameSpecificationQtyUnitGradeOrigin
1X axis rack gear2 module4pcs6 gradeTaiwan
2X axis guide20mm2pcsTaiwan
3X axis motor/1setAC servo motorTAIWAN DELTA
4X axis reducerPO1pcPOMotovario(France)
5Y axis rack gear2 Module10pcs6 gradeTaiwan
6Y axis guide20mm2pcsTaiwan
7Y axis motor/2SetAC servo motorTAIWAN DELTA
8Y axis reducerPO1pcPOMotovario(France)
9Z Axis Ball screw16102pcsGrindingTaiwan TBI
10Z Axis Guide15mm1pcTaiwan
11Z Axis motor400W with brake1pcAC Servo motorTAIWAN DELTA

Control system and etc

NoNameSizeQuantityUnitTechnologyOrigin
1Control Systemcypone1setCyponeshanghai
2Increase/1setcypcutshanghai
3Focus lensΦ40mm1pcsmin 0.01mmAmerican II Lu optical
4Chiller2P1setOptical dual temperature controlXQL
5Electric components/1SetSMCJapan

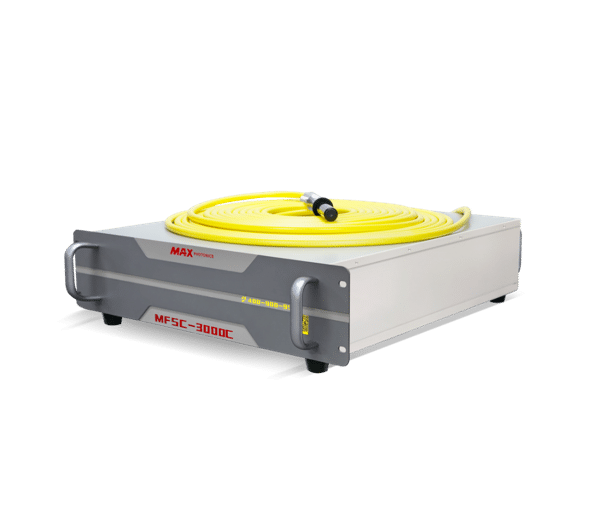

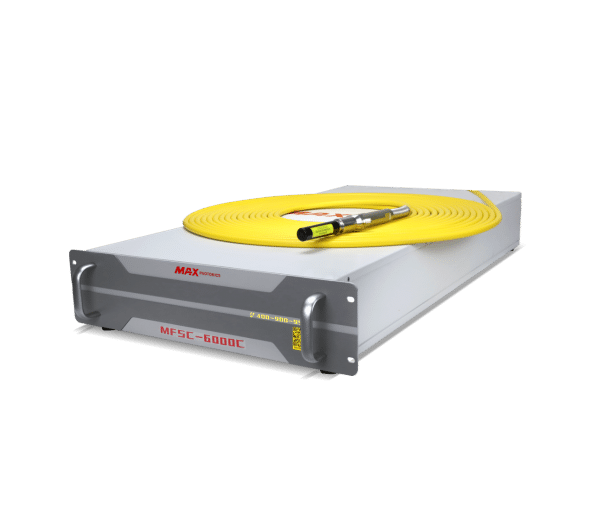

Raycus Fiber Laser Generator

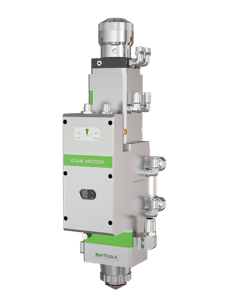

Raytools Manul Focus cutting head

Cypone CNC system

Servo Motor
Brand: TAIWAN DELTA

Taiwan imported grinding gear and rack

Motovario (France) speed reducer

Ball screw, Guide Rail and Slider

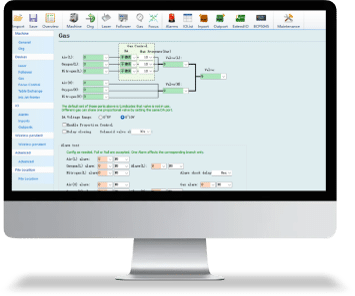

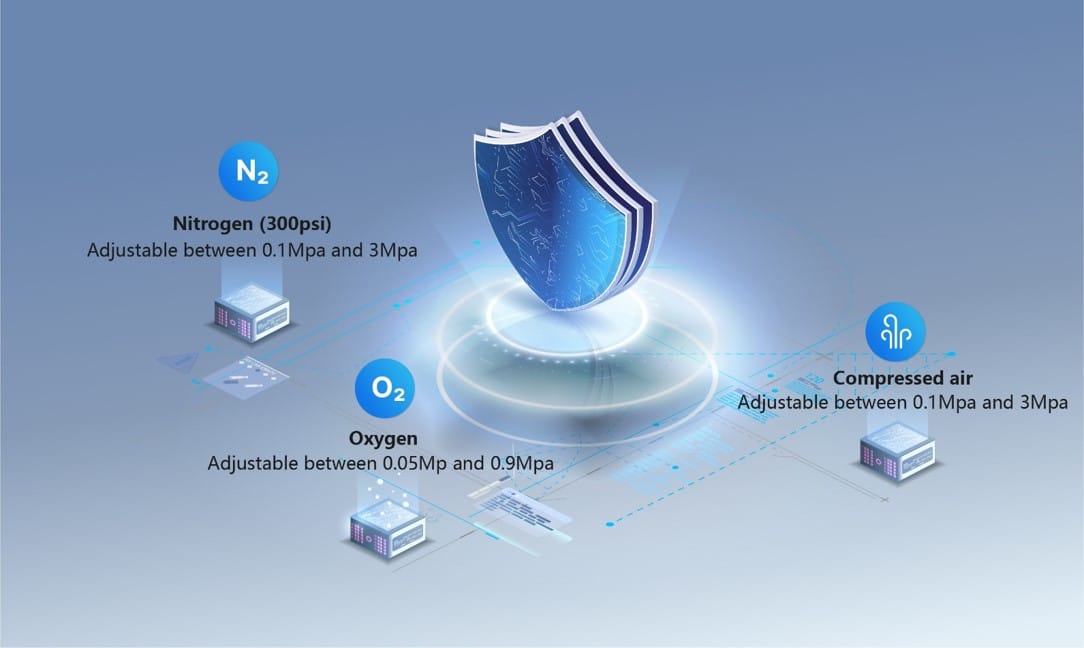

Gas Control

Automatic lubricating oil supply system

The special custom cooling water tank

Integrated ventilation system

consumables:

Protective lens
Nozzles
Ceramic rings
FOCUS LENS

One year warranty for the whole machine.

Why use fiber laser cutter for sheet metal cutting?

Fiber laser cutting machine

Advantages of Fiber Laser Cutting Technology

The Primary Advantages Of Cutting Flat Sheet Metal With Fiber Laser Technology Are Derived From Its Monolithic, Fiber-To-Fiber, Compact Solid State Design Configuration That Is Maintenance Free And Provides A Lower Cost Of Operation Than Can Be Achieved With Comparable CO2 Lasers.

Fiber laser beam characteristics also provide for much faster cutting speeds than CO2 lasers.

The focused beam of even a 2 kW Fiber laser demonstrates a 5X greater power density at the focal point when compared with a 4 kW CO2 laser. It also possesses a 2.5X greater absorption characteristic due to the shorter wavelength of the Fiber laser.

The higher absorption of the Fiber wavelength and the higher power density created by the focused beam combine to achieve up to a five time increase in cutting speeds in materials that are less than 1/4 inch thick.

Fiber laser cutting systems can certainly cut up to one-inch thick with higher Fiber laser powers and even cut faster when utilizing nitrogen as the assist gas, but the “sweet spot” where the most significant benefits are realized is in the 5/16 inch and under range for steel when making comparisons with CO2 systems. For certain, if you are processing stainless, aluminum, brass or copper materials, Fiber laser technology is the fastest and most economical regardless of thickness. (1)

1000w Raycus cutting 5mm stainless steel

RAYCUS 1000W metal CNC fiber laser cutting machine

Laser Tang Q1 3015X 1500W Fiber laser cutting machine

XQL-3015 1500w Fiber laser cutting machine, galvanized steel cutting video

METAL SHEET FIBER LASER CUTTER TESTING VIDEO

Metal tube cutting machine

Carbon steel cutting in the USA

Operation software:

CypOne software is designed for fiber laser sheet cutting machine. It integrates functions of laser technique, parts nesting and CNC control etc. Main functions:
Features consist of drawing processing, parameter setup, process customizing, parts nesting, tool path planning simulating, and cutting process controlling etc.

Supports AI, DXF, PLT, Gerber, LXD file format, and standard G code created by Master Cam, Type3, ARTCUT etc.
