4 Axis Bridge Saw

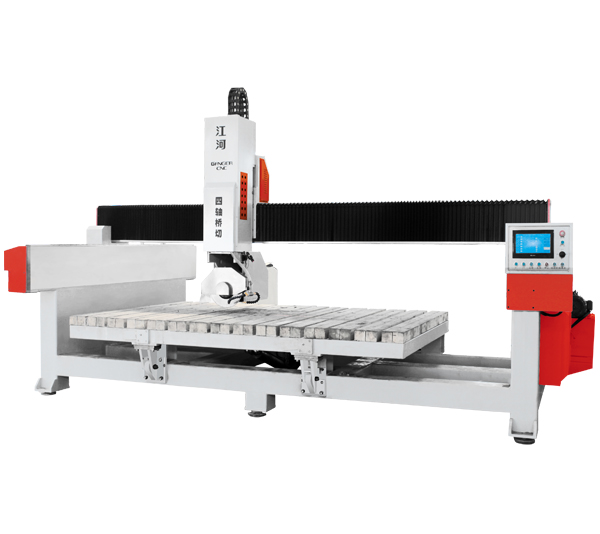

4 Axis Bridge Saw Cutting Machine GQ-3220A Overview

Key Features of the 4 Axis Bridge Saw

The GQ-3220A 4 Axis Bridge Saw is equipped with a variety of advanced features that enhance its cutting capabilities:

• Four Axis Capability: The XYZC four-axis system includes a C axis that automatically rotates from 0 to 135 degrees, allowing for precise horizontal, vertical, and diagonal cuts.
• Automated Control System: The machine features a PLC control system that allows operators to input cutting parameters through an intuitive control panel, automating the cutting process for improved efficiency.
• Positioning Accuracy: An infrared ray system ensures accurate positioning of the workpiece, minimizing the potential for errors during cutting.
• Robust Steel Structure: The machine is built with a solid steel body that guarantees high stability during operation, thus ensuring quality results.
• High Performance: The GQ-3220A is designed for stability, high precision, and fast operation, making it suitable for a variety of cutting tasks.
• Compact Design: Despite its robust capabilities, this machine boasts a compact and rational design, facilitating easy handling and mobility.

Industries and Materials of Application

Applicable Industries: This cutting machine is widely utilized in various sectors, including:

• Sintered Stone Industry
• Fabricated Building Materials Industry
• Home Decoration Materials Industry

Suitable Materials: The GQ-3220A is effective for cutting a diverse range of materials, including:

• Sintered Stone
• Ceramic Plates
• Quartz Stone
• Marble
• Granite

Technical Specifications

Technical Parameters
Model	GQ-3220A
X/Y/Z Axis Working Size	3200*2000*200mm
Diameter of Blade	350mm
Working Table Size	3200x2000mm
Rotation Speed of Blade	3000/6000rpm
Blade Motor Power	11KW
Total Power	25KW
C Axis Rotation Angle	0°- 135°
Control System	GANGER
Gross Weight	4500KGS

Versatile for Straight and Diamond Cutting!

Watch the GQ-3220A in Action
