S9 is professional CNC machine for panel furniture production and equipped with 9KW ATC Spindle ( 12 tool linear magazine). S9 has multifunction: Routing , drilling , cutting , edge chamfering etc.
S9 is also has automatic push function which can push the finished panel board from the worktable and collect the dust at the same time . This way , it’s easier for the operator to unload and load new board.

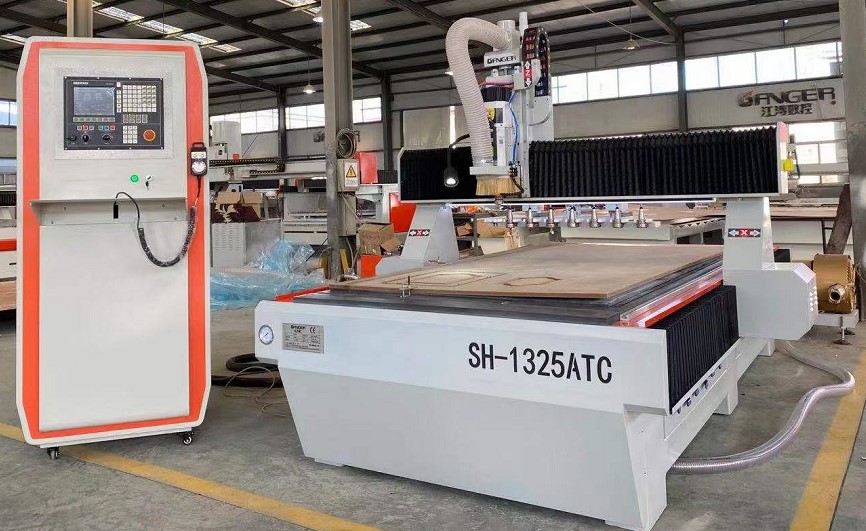

S9 Nesting CNC machine
Application:
For panel furniture and customized cabinets
Applications:
- Panel furniture industry: wood furniture making, cabinet , closet , kitchen etc.
- Door and windows : engraving , chamfering , Cutting , relief etc.
- Suitable for processing of display counters, artificial stone flow management units, petrochemical PF filter plates, headboard, insulation plates, Styrofoam model, yacht bedroom, OA office desktop
Special Features:
- Highly automated nesting solution.
- With 12 tool Linear Automatic Tool changer, changes tools automatically, very convenient and fast.
- With 9 drilling tools for drilling the vertical holes.
- The complete work cycle of loading, nesting, drilling and unloading is carried out automatically to maximize the productivity.
- user friendly, Professional humanizing control system,
- Automatic loading and unloading, saves labor cost, easier for getting the job done, saves time and resources.
Functions:
- routing, drilling, cutting, engraving, etc.
Different controllers available for this product. Siemens, NC studio and SYNTEC are preferred devices. SYNTEC controller details described here
The machine features described in the manufacturer’s website and can be checked here
Simple CNC machine
We have different CNC machines with different functions. Simple CNC router without tool changing is here
Linear tool changing CNC machine
Nesting CNC router for kitchen cabinet and interior decoration described here
CNC machine Videos
In this video the nesting center showed in factory for your reference:
Available without load/unload version, too
Technical specifications of S9
| Parameters | X,Y Working Area： | 1300*2500mm |
| Travelling Position Accuracy: | ±0.05mm | |
| Repositioning Accuracy: | ±0.05mm | |
| Max.Traveling speed: | 80000mm/min | |
| Max.Working speed: | 25000mm/min | |
| Spindle rotating speed: | 18000RPM | |
| Working Voltage: | AC380V/3ph |
| Part name | Type | Unit | Brand | Index | |
|---|---|---|---|---|---|
| Spindle | Air cooled | 1 | Chinese brand | 9kw | |
| Boring head | Vertical 5+4 | 1 | China | 5+4 vertical boring | |
| Control system | 1 | Syntec 60cb | |||
| Transmission | X.Y axis | Gear rack | Chinese gear 2 mol | ||
| Z axis | Ball screw | 1 | Taiwan TBI | ||
| Guide rail | Square rail | 6 | Taiwan T-WIN | 25mm | |
| Drive system | Servo | 4 | Japan Yaskawa Y 1000w servo motor , XZ 850w | ||
| Reducer | Japan | 1 | Shimpo | ||
| Inverter | China | 1 | 380v 11kw | ||
| Table surface | Vacuum | 1 | Vacuum table | ||
| Vacuum pump | type | 1 | 5.5kw oil-less 250m³ oil free pump | ||
| Auto tool changers | Line tool magazine | 12 | with 12 tool holders | ||
| Dust Collector | Double bag | 1 | 5.5KW dust collector | ||
| Auto oil system | 1 | Yes | |||
| Auto tool sensor | 1 | Yes | |||
| MPG handle wheel | 1 | Yes | |||
| Safety sensor | 1 | Yes | |||
Good quality Chinese Air-cooled spindle 9KW

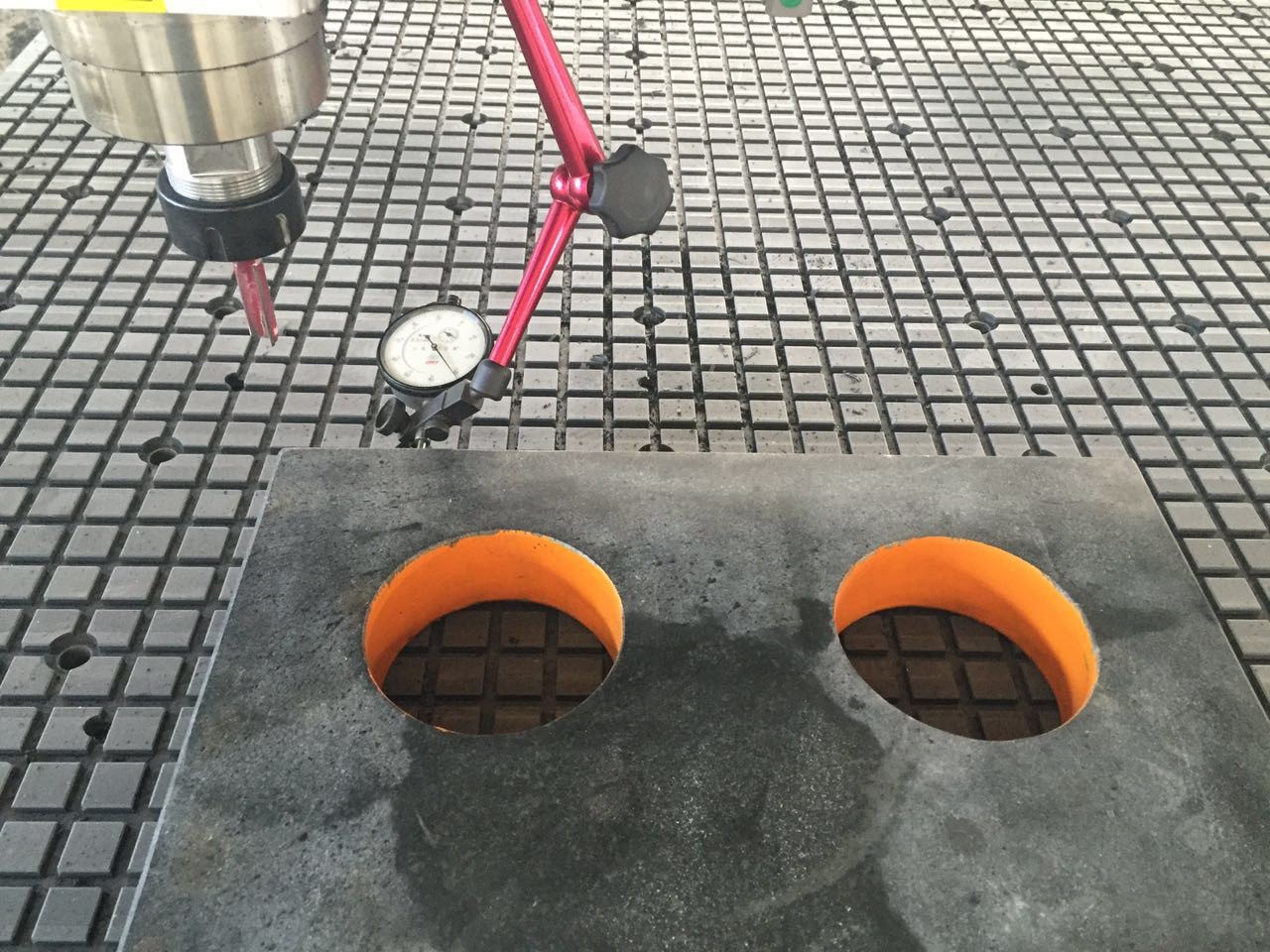

Installation of rails, rack, reducer, screw and other mechanical parts which have been calibrated to ensure that the machine accuracy is within ± 0.05mm. S series of quality inspection processes up to more than 110 items.
