Introducing the GSY-3015A: A Versatile Stone CNC Machine for Kitchen Countertops
Work Samples
Product Overview

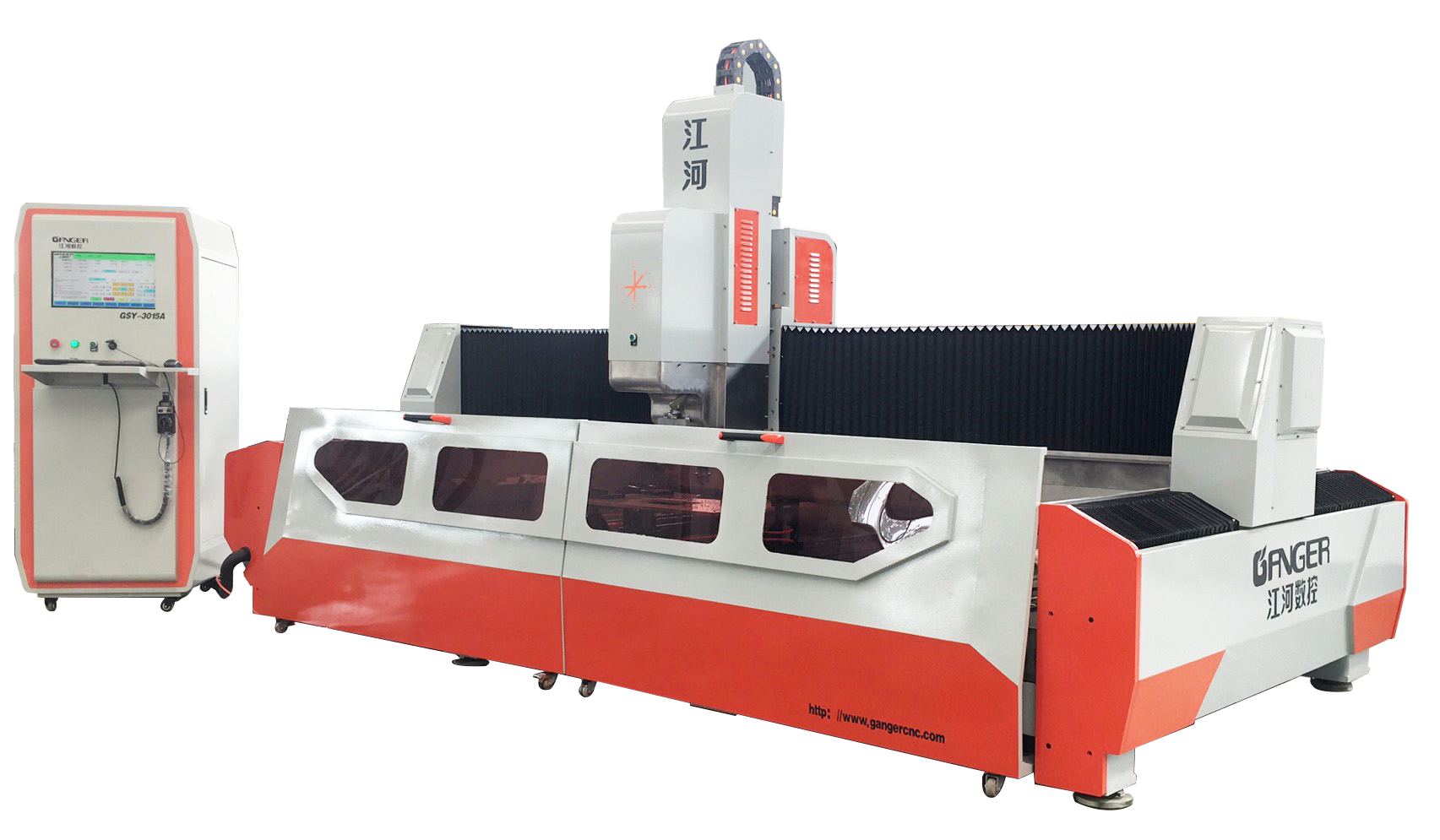

Quartz CNC Machining Center GSY-3015A
Key Features of the GSY-3015A
1. Equipped with a linear-type automatic tool changer, featuring 12 tools, enhancing convenience and operational efficiency.
2. Capable of cutting, drilling holes, edge profiling, and polishing, allowing for the completion of one countertop in a single setup, thereby maximizing efficiency.
3. User-friendly control system designed for ease of operation, making it suitable for users of varying skill levels.
4. The machine features a robust steel structure that ensures high stability and durability during operation.
Applicable Industries and Materials
Industries: The GSY-3015A is extensively utilized in CNC machining and production for a variety of applications, including:
- Basins
- Cabinet countertops
- Bathroom countertops
- Bar counters
- Kitchen countertops
- Washstands
- Marble walls
- Dining tables
- Coffee tables
- Window sills
- Door pockets
Materials: This machine is compatible with a wide range of materials, including:
- Granite
- Quartz stone
- Artificial stone
- Marble
- Various types of stone
Functionality of the GSY-3015A
The GSY-3015A is specifically designed for countertop manufacturing, performing a variety of tasks such as cutting, sink cut-outs, edge profiling, polishing, and drilling faucet holes, all integrated into one efficient machine.
Specifications
| 1 | XYZ Axis Working area | 3000*1500*430mm |
|---|---|---|
| 2 | Coolant equipment | With stainless steel water tank |
| 3 | Clamping | Aluminum T-slot with rubber working table plus 8 vacuum suction cups |
| 4 | Power transmission | XY good quality Helical rack gear Z Taiwan ballscrew transmission |
| 5 | Linear motion | Taiwan guide rails 30mm |
| 6 | Servo system | X axis: Chinese Servo motor 1.3KW *1 pieces, with matched servo drivers |
| 7 | Y axis: Chinese Servo motor 1.3KW *2 pieces, with matched servo drivers | |
| 8 | Z axis: Chinese Servo motor with brake, 1.3KW *1 piece, with matched servo driver | |
| 9 | Control system | Ncstudio (English version) / GANGER / Siemens Germany |
| 10 | Compatible Software: | CAD(file format .DXF), Type3, Artcam, JDpaint, UG, Artcut, etc.(G code, file format .nc, .cnc, .tap, …) |
| 11 | Spindle | Taiwan high quality ATC Spindle 7.5KW, (special spindle, water flowing from the inner of the spindle, to cool the tools and spindle), 6000rpm, BT40 (collet ER32) |
| 12 | Inverter | Taiwan Delta |
| 13 | Tool Magazine | with double Linear tool magazine, 12 pieces tool position (left side 6 pcs, right side 6 pcs) |
| 14 | Z height correction | Tool sensor for Z axis |
| 15 | Hand wheel | Yes |
| 16 | Water cooling system, | including water nozzle, pump, 4 sides stainless steel water tank , to cool the tools, prolong its lifetime. |
| 17 | Lubrication | Automatic lubrication system |
| 18 | Emergency for safety | Emergency stops on the gantry, beside the emergency stop on the control cabinet, for more safety |
| 19 | Light alarm | Yes |
| 20 | Limit switches | Japan Omron high sensitivity limited switch |
| 21 | Working voltage | 380V, 50Hz/60Hz, 3PH |
| 22 | Structure | Steady and Heavy-duty steel structure (special for Stone) |
| 23 | Tool Box | (All the standard tools included) |
| 24 | Gross Weight: | 4500KGS |
| 25 | Export packaging | Plywood packing |
Video Demonstrations
