TCP 3‑in‑1 Laser Cutting Machine (3018 – 12kW)

Plate Cutting • Tube Cutting • Profile Cutting • 3D Bevel Cutting

The TCP Laser Cutting Machine is a next‑generation, high‑power structural‑steel processing system that integrates laser cutting, precision mechanical engineering, intelligent detection, and six‑axis three‑dimensional CNC technology. It is engineered to replace outdated manual and semi‑automatic fabrication methods with a high‑efficiency, high‑accuracy, fully automated production workflow.

This machine is designed for factories that want to dramatically improve productivity, reduce labour costs, and elevate their professional image with a premium, industrial‑grade cutting system.

1. Triple‑Function 3‑in‑1 Cutting System

The TCP 3018 is a multi‑purpose cutting platform capable of processing:

• Round tubes
• Square tubes
• H‑beams
• Channel beams
• Angle beams
• Flat plate / sheet metal
• 3D bevel cutting

This makes it one of the most versatile structural‑steel cutting systems available in Australia.

2. Rotary Cutting for Tubes (Up to 12 Metres)

For round and square tubes, the machine is equipped with a high‑precision rotary axis:

• Chuck capacity: 240 mm
• Tube length: 12 metres
• Supported shapes: Round, square, rectangular

The rotary axis ensures stable rotation, accurate beveling, and clean, consistent cuts along long tube lengths.

3. Stationary Support Cutting for Heavy Profiles

For large structural profiles such as:

• H‑beams (up to 700 mm x 15 m)
• Angle beams (up to 600 mm x 600 mm x 15 m)
• Channel beams / U‑profiles

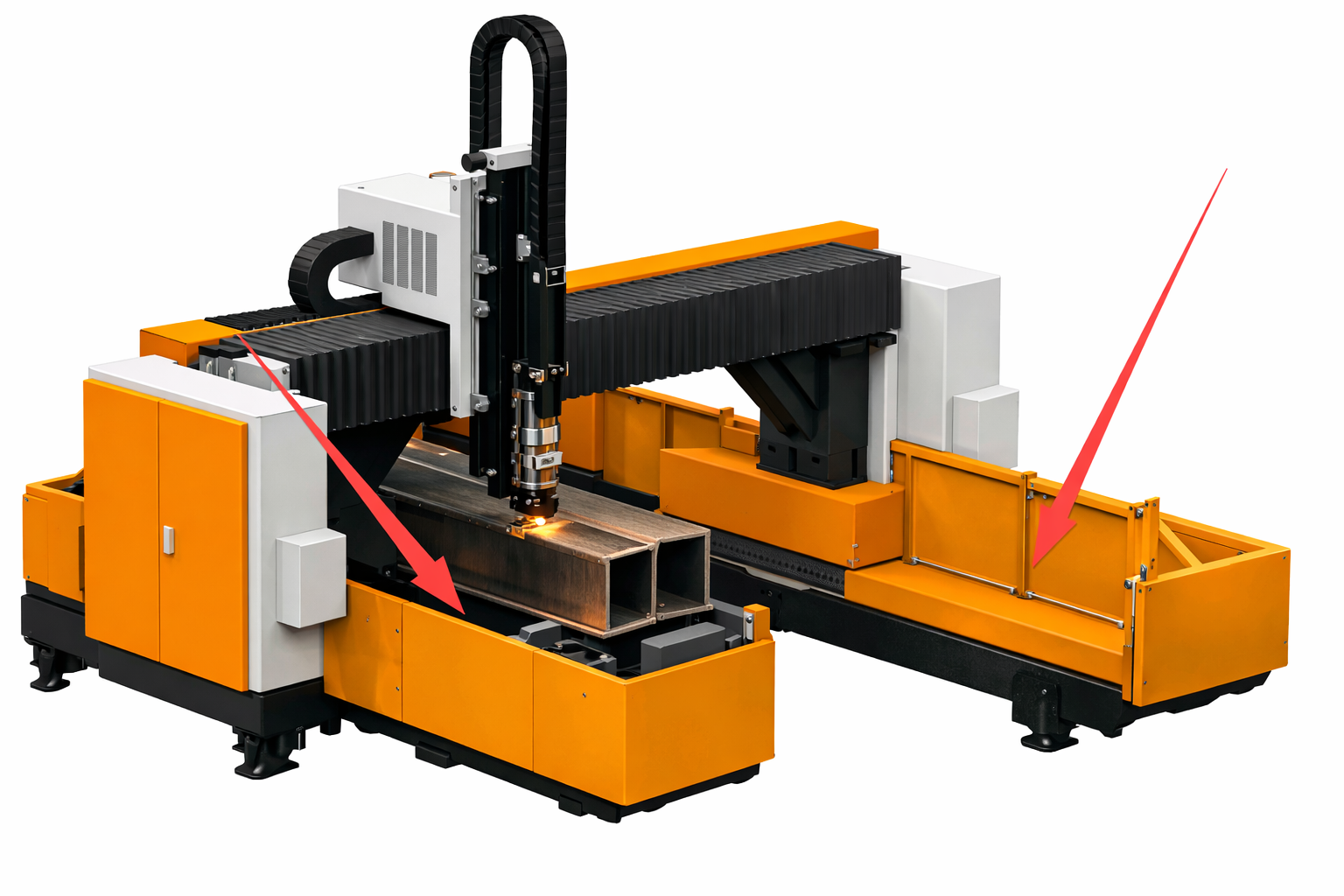

These components are placed on a stationary support stand, allowing the cutting head to oscillate and follow the profile. This design ensures:

• High stability
• Accurate beveling
• Smooth multi‑surface cutting
• Reduced vibration and deformation

This is essential for heavy‑duty structural steel fabrication.

4. High‑Power Laser Cutting Performance

The TCP 3018 supports 12kW fiber laser source (Max or Raycus):

• 12kW: Carbon steel up to 40 mm
• Typical cutting thickness: 30–40 mm

High‑power cutting ensures fast processing speeds and clean edges, even on thick structural materials.

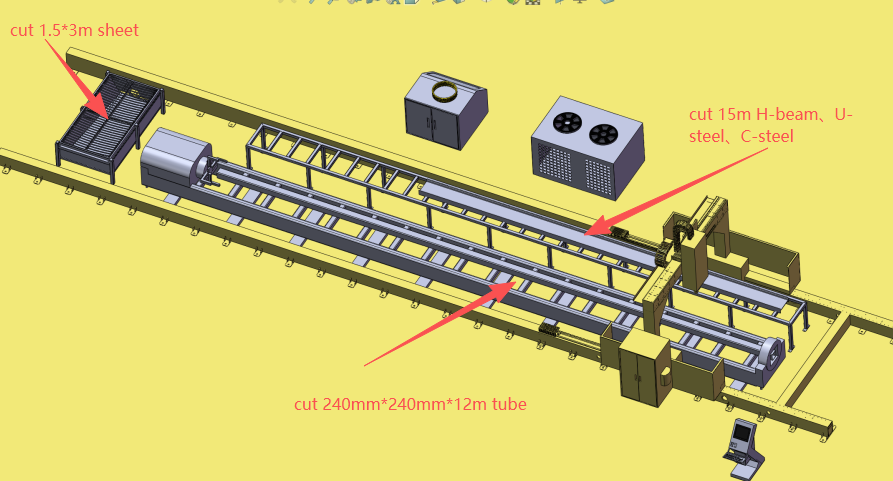

5. Large‑Scale Industrial Cutting Capacity

Cutting Capabilities

• Round tubes: 240 mm × 12 m
• Square tubes: 240 × 240 mm × 12 m
• Angle steel: 600 × 600 mm × 15 m
• H‑beams: 700 mm × 15 m
• U‑channel steel: Full range
• Sheet metal: 1500 × 3000 mm

Work Area

• Plate cutting area: 3000 × 18000 mm
• Z‑axis travel: 800 mm

Machine Dimensions

• 20 m × 5 m × 4.1 m
• Delivered in 40HC container
• Delivery time: 50 days

6. Dramatic Efficiency Improvements

“Operator requirement drops from 8–12 people to 2 people.” “Processing efficiency increases from 12 pieces/day to 50 pieces/day.” “Accuracy improves from 1–2 mm to 0.20–0.50 mm.” “Processing cost drops from AUD 12.5/piece to AUD 4/piece.”

This is a 4× productivity increase, 80% labour reduction, and 70% cost reduction.

7. Advanced Cutting Processes

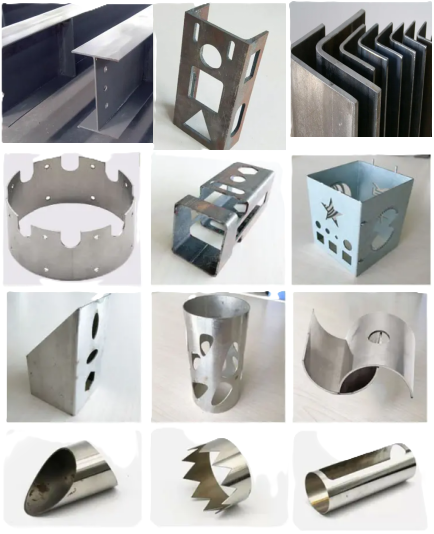

The TCP 3018 supports a full suite of professional cutting processes:

• Cutting, drilling, beveling
• Fine‑hole cutting
• Convex cuts
• Miter cuts
• Z‑joint welding preparation
• Multi‑angle beveling for structural steel

These processes significantly reduce welding workload and improve assembly accuracy.

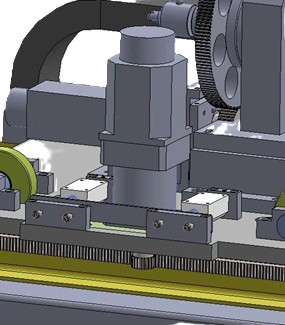

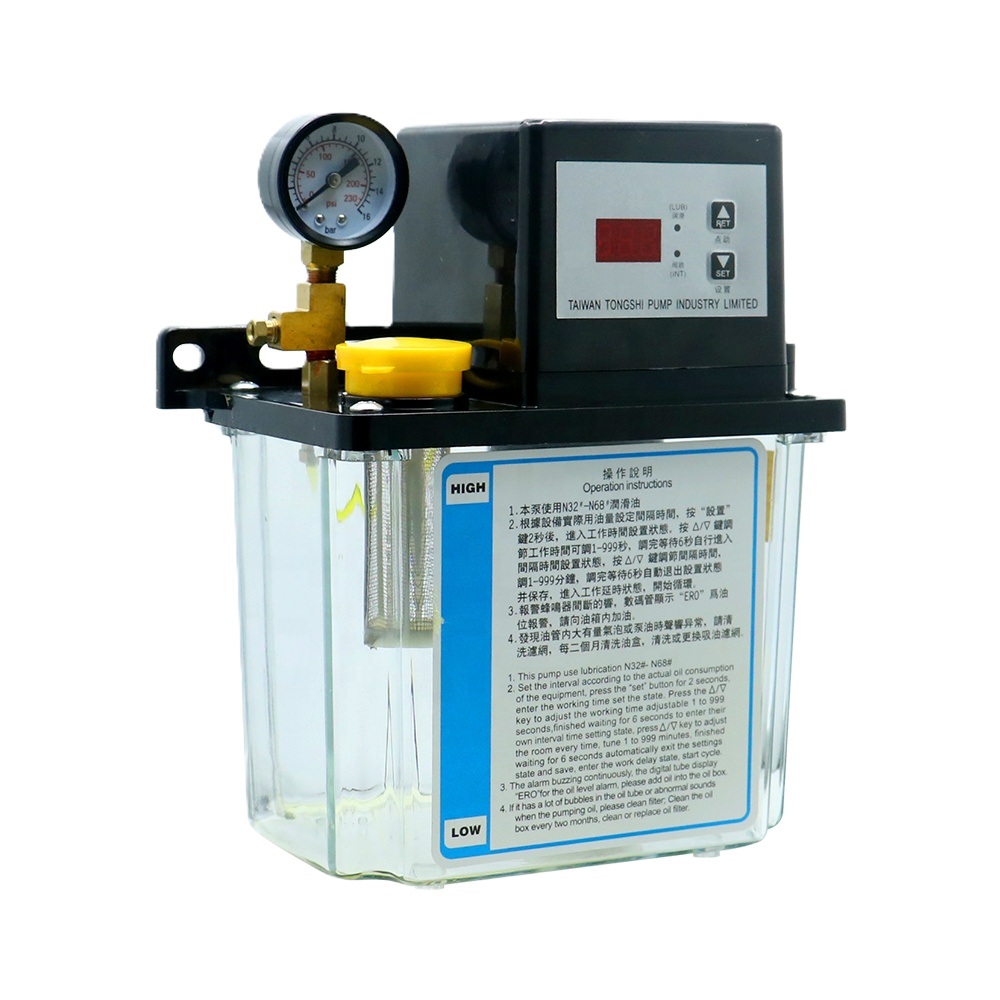

8. Premium Components for Industrial Reliability

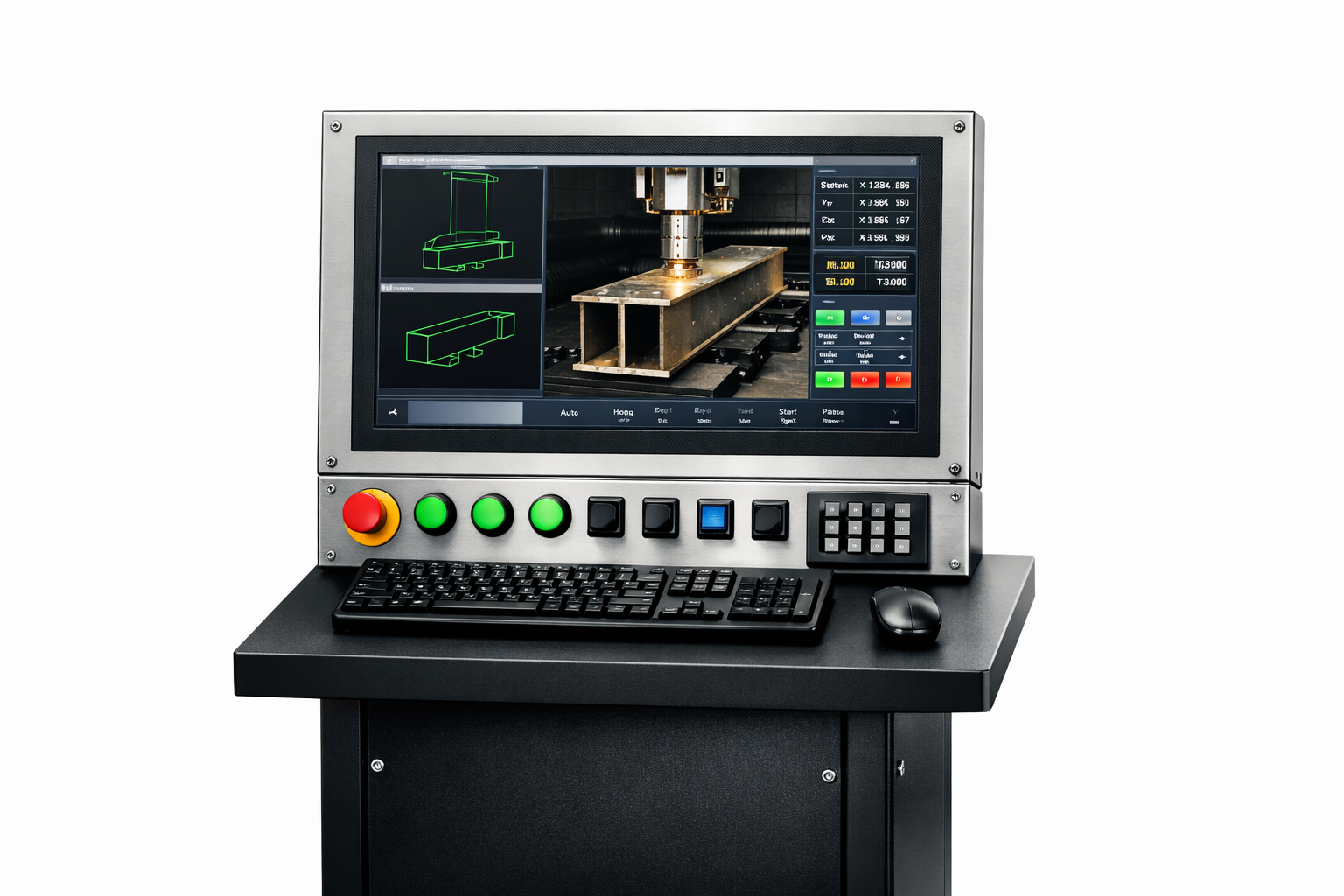

9. Control System & User Interface

The TCP 3018 uses a professional industrial computer with:

• 19‑inch HD display
• Remote‑control operation
• EOE CNC control system
• High‑precision motion control

This ensures stable, accurate, and user‑friendly operation.

10. A Machine That Elevates Your Factory Image

Installing the TCP 3018 in your workshop does more than increase productivity — it transforms your factory’s professional image.

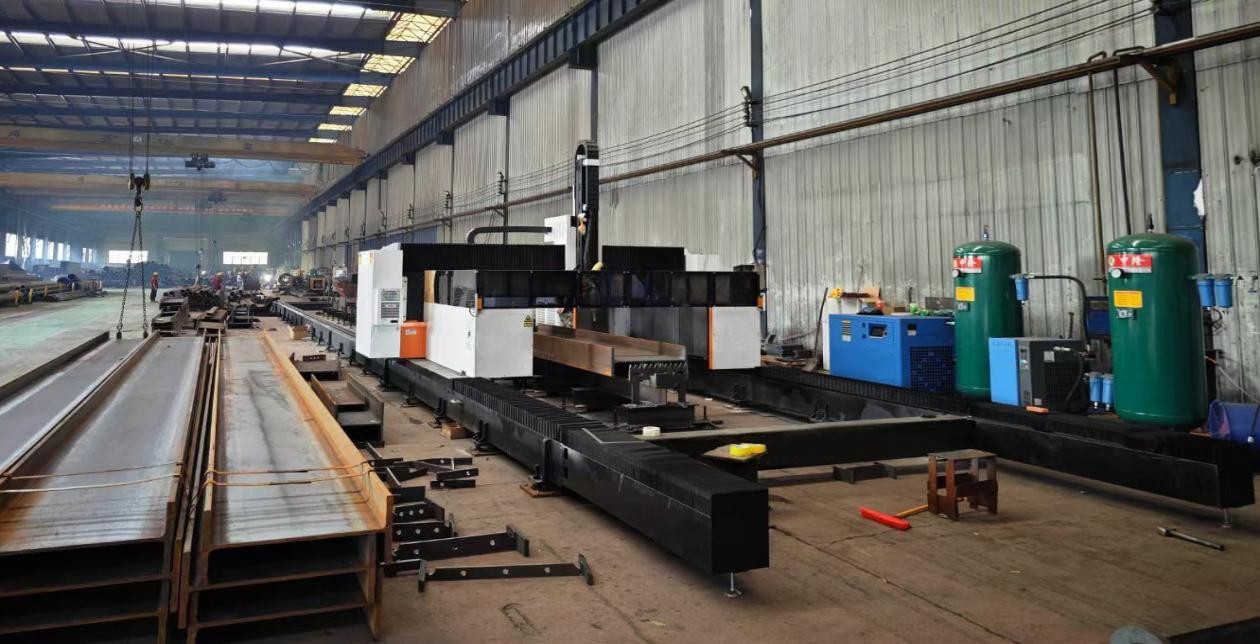

Its massive 20‑metre structure, enclosed design, and advanced automation create:

• A modern, high‑tech environment
• A strong impression for visiting clients
• A showcase of your company’s capability and investment in quality

It becomes a statement piece that reflects your company’s strength.

📌 What Is TCP Technology in Laser Cutting?

TCP (Tool Center Point) technology ensures the laser’s focal point stays perfectly aligned with the programmed cutting path — even when the cutting head tilts, rotates, or moves across complex 3D surfaces. This intelligent control system synchronizes all machine axes so the laser beam always hits the material at the correct angle and distance.

TCP technology continuously adjusts the laser head’s position and orientation in real time. This guarantees stable cutting quality on flanges, webs, bevels, and curved surfaces, eliminating the need for manual recalibration or repositioning.

📌 Why TCP Matters for H‑Beam Laser Cutting

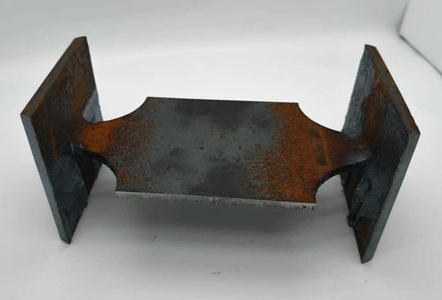

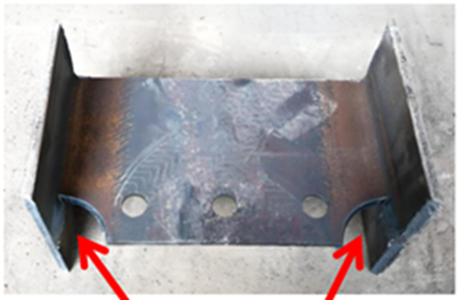

H‑beam fabrication requires precise bevels, smooth transitions, and accurate hole placement. TCP technology makes this possible by maintaining the correct focal point and cutting angle across all surfaces of the beam.

• Maintains perpendicularity on angled surfaces
• Cuts flanges, webs, bevels, and end contours in one continuous process
• Automatically compensates for thermal deformation

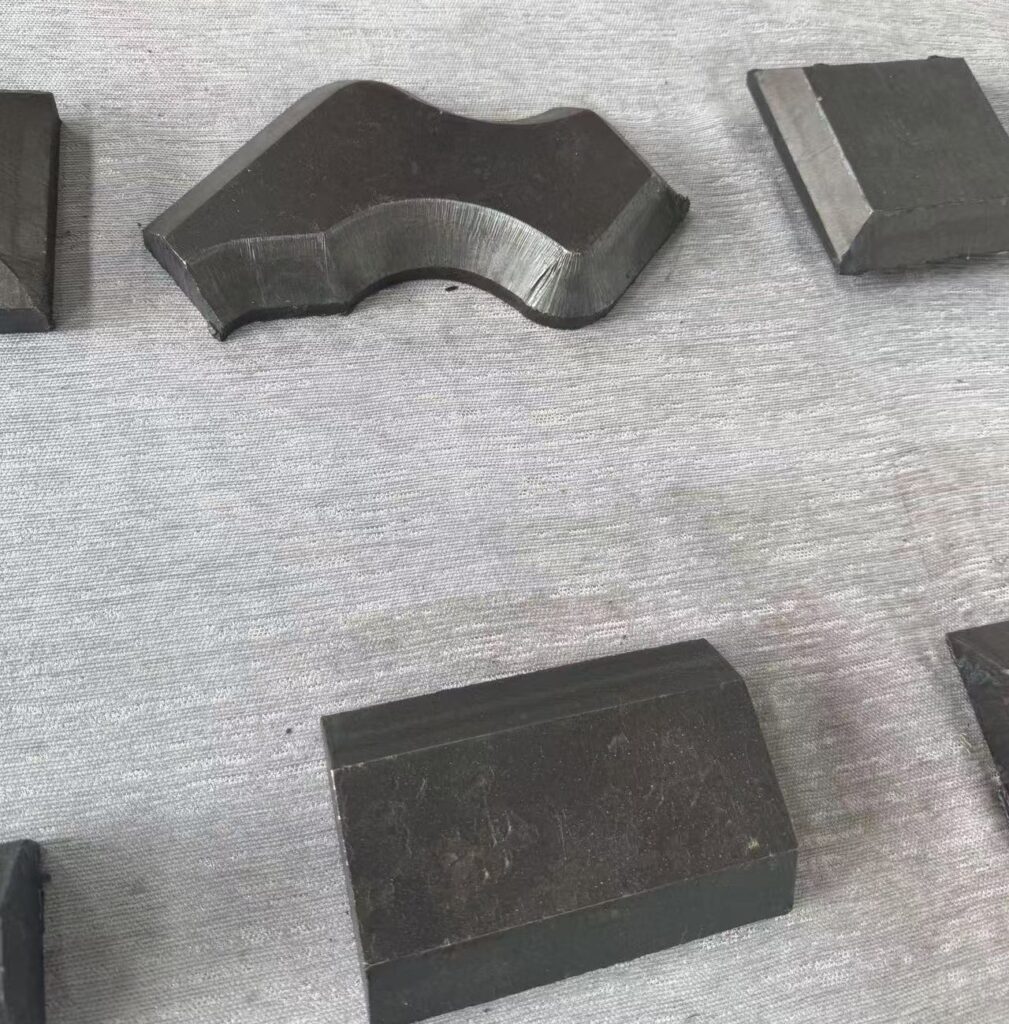

• Supports K‑, V‑, Y‑ and variable‑angle bevels
• Reduces manual handling and fixture changes

📌 Technical Advantages of TCP Laser Cutting

Feature	Advantage
Precision Control	Maintains ±0.1 mm accuracy across multi‑axis movements
Adaptive Cutting	Real‑time head tilt and path correction
High Efficiency	Cuts multiple surfaces without repositioning
Material Savings	Optimized path planning reduces scrap
Automation Ready	Works with CAD/CAM, MES, and robotic systems

📌 Application Industries

The TCP laser cutting machine is ideal for industries requiring high‑precision structural steel processing, including:

• Structural steel fabrication
• Shipbuilding and offshore platforms
• Heavy machinery manufacturing
• Bridge and infrastructure construction
• Mining and energy equipment

📌 Intelligent Control & Industry 4.0 Integration

The TCP laser cutting system integrates advanced motion control, real‑time monitoring, and AI‑assisted path optimization. With offline programming, automatic bevel calculation, and digital twin simulation, the machine is fully prepared for Industry 4.0 smart manufacturing environments.

This technology offers:

• Real‑time cutting feedback
• Automatic collision avoidance
• CAD/CAM offline programming
• Remote diagnostics and monitoring
• Digital twin simulation for complex profiles

Summary

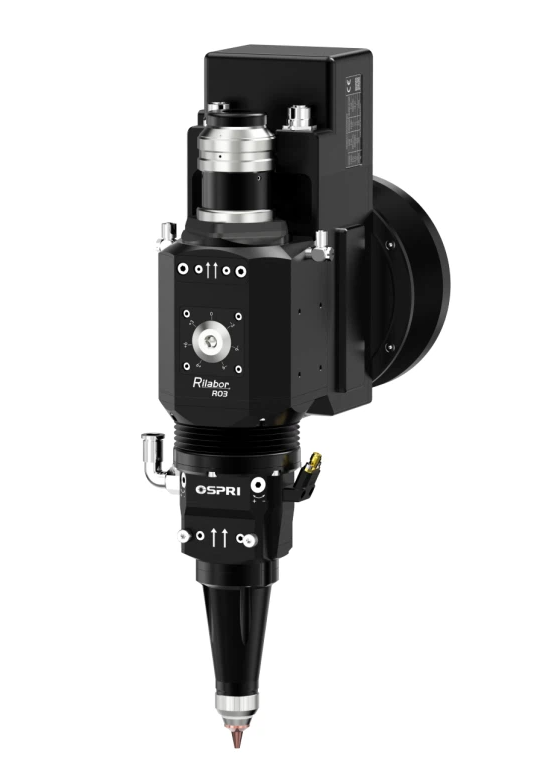

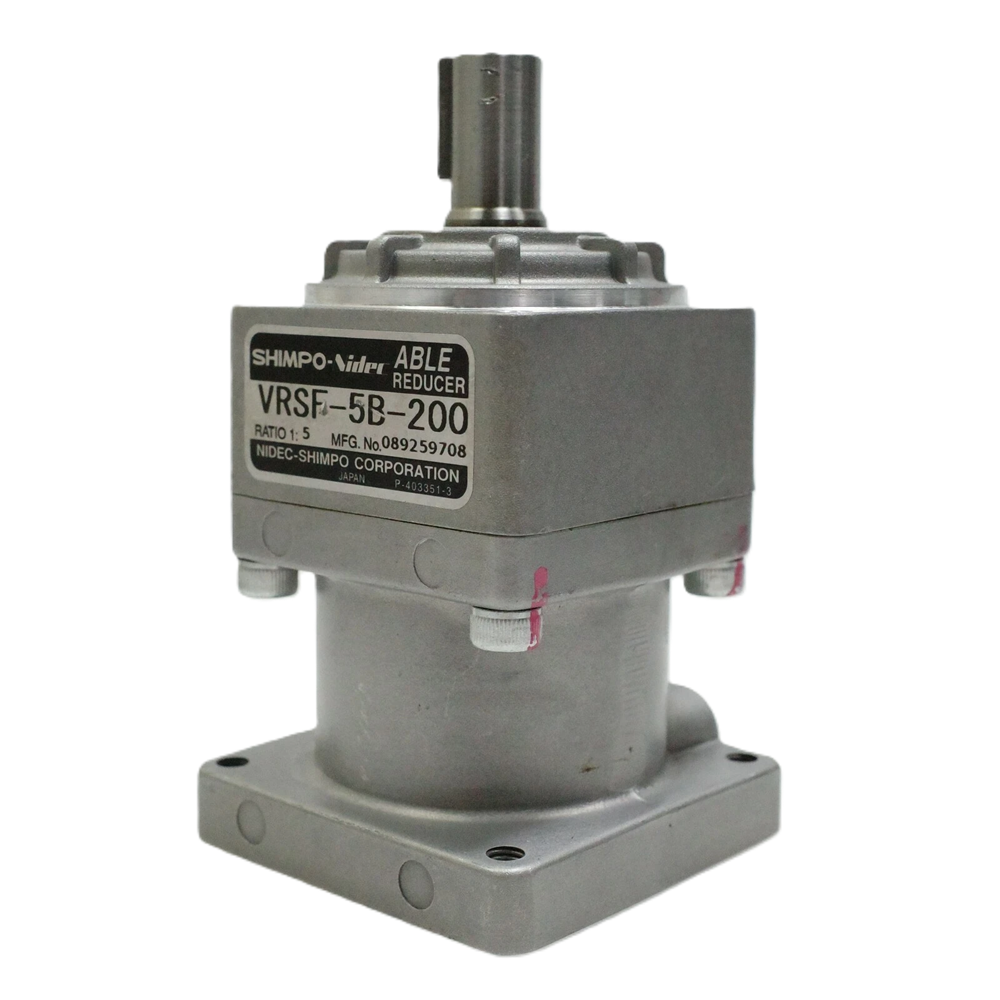

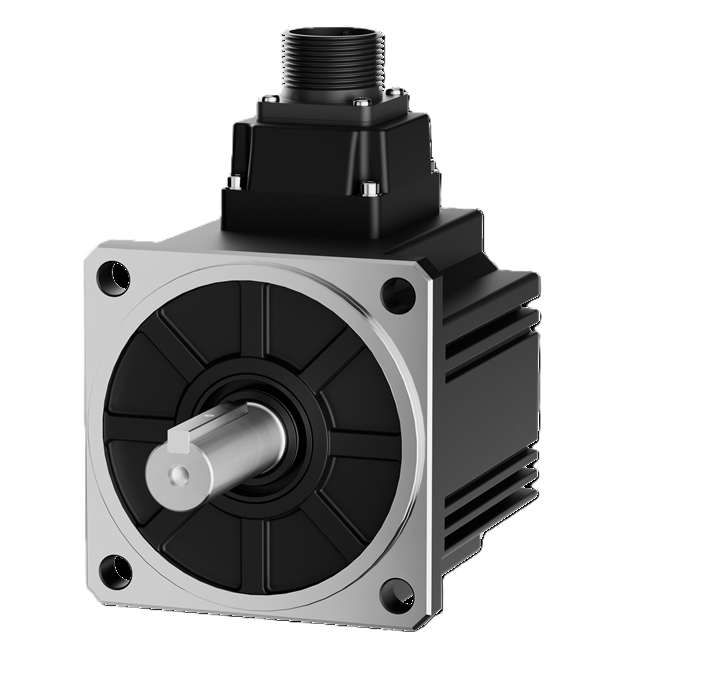

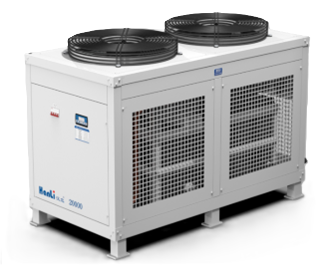

The TCP 3018 3‑in‑1 Laser Cutting Machine is a high‑power, six‑axis CNC cutting system capable of processing plates, tubes, profiles, and bevels in one integrated platform. With rotary cutting for 12‑metre tubes, stationary support cutting for heavy beams, and advanced beveling capabilities, it delivers unmatched versatility and efficiency. Equipped with premium components (OSPRI, HCFA, SHIMPO, Hanli, SMC), it offers industrial‑grade reliability and precision. Ideal for steel‑structure fabrication, petrochemical equipment, offshore platforms, and heavy engineering, the TCP 3018 dramatically reduces labour, increases accuracy, and elevates your factory’s professional image.
