6010XQ Laser Tube Cutting Machine
Portable Precision for On‑Site Profile Processing
The 6010XQ Laser Tube Cutting Machine is a high‑precision, portable tube‑cutting solution designed for construction sites, mobile fabrication teams, and workshops that need accurate cutting without the size or cost of a full industrial machine. It offers more precision and stability than the 6010M, while remaining compact and transport‑friendly — making it the ideal mid‑range portable model.
Why Choose the 6010XQ?
The 6010XQ is engineered for buyers who need:
- Portable laser tube cutting
- Higher precision than the 6010M
- A compact machine for construction sites or tight workshops
- Reliable cutting of round and square pipes
- A cost‑effective alternative to large workshop machines
It sits perfectly between the entry‑level 6010M and the industrial 6012MY / 6012MQ series.
Key Features of the 6010XQ Laser Tube Cutter

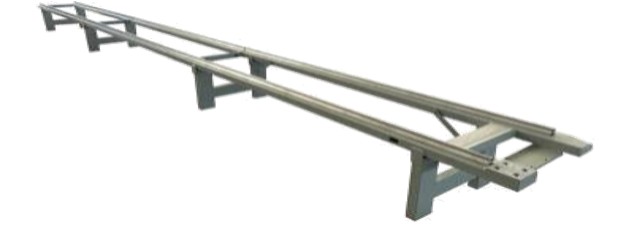

1. Portable Split‑Body Design
The 6010XQ uses a three‑section split body, making it easy to transport and install on construction sites or multi‑location projects.
- 100*50*3mm square tube structure
- Lightweight and compact
- Three 2.2m sections for easy handling
- Ideal for mobile fabrication teams
This design is shared with the 6010M but with improved precision and stability.
2. Dual‑Axis Linkage for Higher Accuracy
The XQ model features a dual‑axis linkage system, including:
- Pipe rotation axis
- Axial feeding axis
This allows:
- More accurate cutting
- Smoother motion
- Better performance on intersecting lines and drilling operations
It is significantly more precise than the 6010M, making it suitable for jobs requiring tighter tolerances.
3. High‑Precision Transmission System
The 6010XQ is equipped with:
- Servo motors
- Precision gear racks
- Double‑side linear guide rails
These components deliver:
- Stable motion
- High repeatability
- Clean, consistent cuts
This places the XQ closer to the 6012MY in precision, while remaining portable.
4. User‑Friendly Control System
The machine uses the Shanghai Fangling control system, offering:
- Programming‑free operation

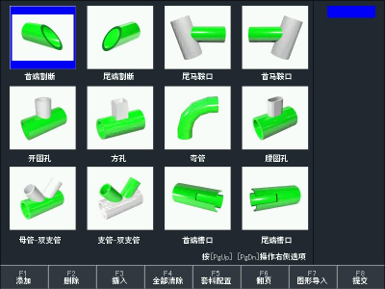

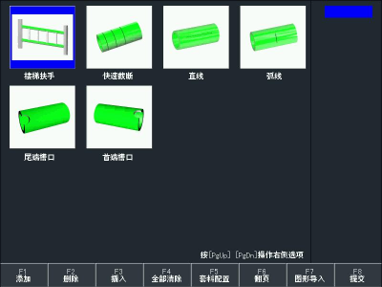

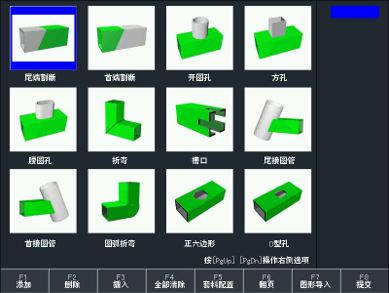

- Built‑in graphics library
- USB file import
- Simple, intuitive interface
The system requires no programming, comes with a built-in graphics library, and offers intuitive operation.
6010XQ vs Other Models – Which One Should You Choose?
6010XQ vs 6010M (Portable Models)
- XQ = higher precision, better transmission system
- M = more economical, basic portable model
- Both are portable and split‑body
Choose 6010XQ if you need better accuracy on‑site.
6010XQ vs 6012MY (Mid‑Size Workshop Model)
- XQ = portable, lighter, site‑ready
- MY = workshop‑based, stronger bed, 120mm chuck
- MY offers higher long‑term precision
Choose 6012MY if you need a workshop machine with more stability.
6010XQ vs 6012MQ (Heavy‑Duty Industrial Model)
- XQ = portable, compact
- MQ = heavy‑duty, 160mm chuck, 10‑year bed lifespan
- MQ is for high‑volume industrial production
Choose 6012MQ if you need maximum rigidity and long‑term accuracy.
Who Is the 6010XQ Best For?
- Construction site contractors
- Mobile fabrication teams
- Small workshops with limited space
- Businesses needing precision + portability
- Buyers who want more accuracy than the 6010M but don’t need a full industrial machine
Device configuration list:
| NO. | name | standard layout | |
|---|---|---|---|
| 1 | laser generator | Raycus | |
| 2 | laser cutting head | Ospri | |
| 3 | cooling-water machine | special domain | |
| 4 | numerical control system | Shanghai Fangling | |
| 5 | electric relay | OMRON | |
| 6 | motor drive | servo | |
Device technical parameters:
| NO. | model | technical parameter |
|---|---|---|
| 1 | effective cutting diameter | Square pipe with diameter within 19-100 mm |
| 2 | cutting thickness | 5mm (depending on the material and laser power) |
| 3 | effective cutting length of pipe | 6000 mm |
| 4 | cutting precision error | ±0.5 mm |
| 5 | cutting speed | 0-7000mm/min for square tubes; 0-8000mm/min for round tubes |
| 6 | repositioning accuracy | ±0.01mm |
| 7 | Device size | 7500 mm*800 mm*1100 mm (subject to actual dimensions) |
| 8 | weight of equipment | take the physical as the criterion |
| 9 | supply voltage | 380 V |
| 10 | air supply | air |
| 11 | Drive mode | gear rack transmission |
| 12 | lead rail | cylindrical orbit |
| 13 | chuck device | front and rear pneumatic chuck |
| 14 | Material feeding method | Manual feeding–automatic feeding and cutting |
| 15 | tail length | 200 mm |
Note: The accuracy of the workpiece depends on factors such as the type of workpiece and pre-processing. Any changes to the above parameter configurations will not be notified separately.
The final technical parameter configuration is subject to the actual order agreement.
Summary
The 6010XQ Laser Tube Cutting Machine is a portable, high‑precision tube cutter designed for on‑site pipe processing and small workshops. With a dual‑axis linkage system, servo‑driven transmission, and the Shanghai Fangling control platform, it delivers superior accuracy compared to the 6010M while remaining compact and easy to transport. Positioned between the 6010M and the 6012MY/MQ series, the 6010XQ is the ideal choice for buyers seeking precision, portability, and value.
Samples
Machine price
This machine can be ordered for AU$22,000+gst. Please contact us for details.
