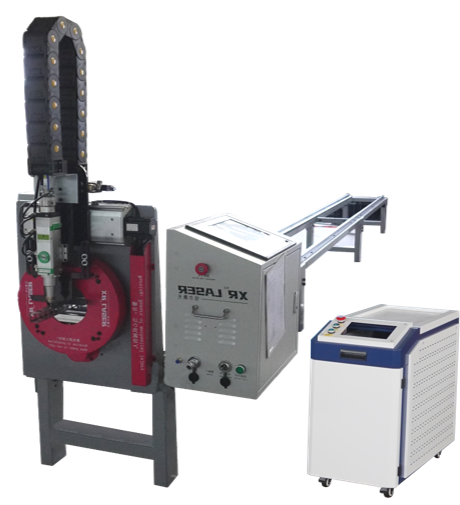

6010M Laser Tube Cutter
Portable, Precise and Built for On‑Site Profile Processing
The 6010M Laser Tube Cutter is engineered to meet the growing demand for efficient pipe processing at construction sites. Designed as a compact, portable, and universal laser pipe cutting machine, it supports both round and square pipes, making it ideal for a wide range of industrial applications.
Key Features of the 6010M Laser Tube Cutter
Portable, Small‑Sized Design for On‑Site Use
The 6010M is built for mobility and convenience. Its machine body can be split into three 2.2‑meter sections, making transportation simple and efficient. The standard effective processing length is 6 meters, with customizable options available.
High Cost‑Effectiveness and Universal Application
This model delivers exceptional value, offering the capabilities of a professional laser tube cutter at an affordable price. It is suitable for construction sites, fabrication workshops, and small to medium‑scale production environments.
Advanced Cutting Capabilities
Two‑Axis Linkage System
The machine features:
- A pipe rotation axis
- An axial backward‑pushing axis aligned with the torch head
This configuration enables:
- Cutting of various intersecting line cross‑sections
- Technical operations such as drilling
Note: The machine does not support bevel cutting on pipe walls.
High Precision and Stability
Equipped with:
- Precision gear racks
- Servo motors
- Double‑side linear guide rails
These components significantly enhance cutting accuracy, stability, and overall performance, ensuring clean and consistent results.
User‑Friendly Operation
Programming‑Free System
The 6010M includes:
- A built‑in graphics library
- Intuitive, simple controls
- No programming required
This allows operators of all skill levels to begin cutting quickly and confidently.
Built for Durability and Long‑Term Value
From component selection to assembly, training, and after‑sales support, the 6010M is designed to be a reliable, durable, and cost‑effective laser pipe cutting solution. It provides long‑term performance with minimal maintenance requirements, making it a smart investment for businesses seeking efficiency and precision.
Equipment Configuration Summary
The 6010M Laser Tube Cutter is built with reliable, industry‑proven components to ensure stable performance, long service life, and high‑precision cutting. Below is an SEO‑optimized summary of the machine’s core configuration.
Core Laser & Cutting Components
These components form the heart of the machine, delivering consistent cutting power and accuracy.
- Laser Generator — Raycus C015H1 High‑efficiency fiber laser source known for stable output and long lifespan.
- Laser Cutting Head — Osprey / Liaqiang Automatically delivered from either brand; both offer reliable focusing and smooth cutting performance.
Cooling & Thermal Management
- Industrial Chiller — Tewei Maintains optimal laser temperature for continuous, stable operation.
Control & Automation System
- CNC Control System — Shanghai Fangling Provides intuitive operation, fast response, and precise motion control.
Electrical & Safety Components
- Relay Components — Schneider Ensures electrical stability, safety, and reliable switching performance.
Motion & Drive System
- Motor Drive — Servo Delivers smooth, accurate movement for high‑precision pipe cutting.
The 6010M Laser Tube Cutter is equipped with a Raycus fiber laser source, Osprey/Liaqiang cutting head, Tewei industrial chiller, and a Shanghai Fangling CNC system, supported by Schneider electrical components and servo‑driven motion control. This combination ensures stable performance, high‑precision cutting, and long‑term reliability, making it an ideal solution for construction sites, fabrication workshops, and pipe‑processing businesses.
Technical Parameters
- Pipe Size Capacity — Handles round pipes 20–120mm and square/rectangular pipes 20–100mm
- Cutting Thickness — Up to 4mm, depending on material and laser power
- Processing Length — Supports 6,000mm effective cutting length
- Cutting Accuracy — Dimensional error within ±0.5mm
- Homing Accuracy — Precision positioning at ±0.01mm
- Cutting Speed —
- Round pipes: 0–8000mm/min
- Square pipes: 0–7000mm/min
- Machine Dimensions — Approx. 6600 × 500 × 1100mm
- Machine Weight — Around 350kg
- Power Requirements — Standard 220V supply
- Air Source — Operates using clean air
- Drive System — Gear‑and‑rack transmission for stable motion
- Guide Rail Type — Double‑side cylindrical guide rails
- Chuck System — Front manual universal chuck + rear manual four‑jaw chuck
- Feeding Method — Manual loading with automatic feeding and cutting
- Tail Material Length — Residual tail length approx. 200mm

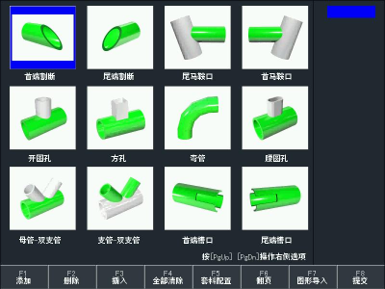

Shanghai Fangling Control System – Smart, Simple, Programming‑Free Operation
The Shanghai Fangling control system is a powerful, multi‑functional software platform designed to make laser tube cutting faster, easier, and more efficient.
Key Features of the Fangling Control Software

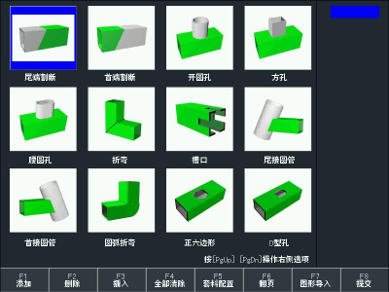

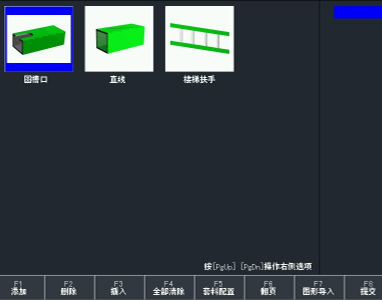

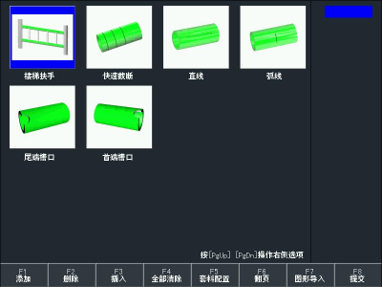

- Programming‑Free Operation Built‑in graphics library with commonly used cutting shapes allows operators to start cutting without CAD skills.
- Easy‑to‑Learn Interface Simple, intuitive controls reduce training time and streamline daily operation.
- USB File Support Direct file reading from USB drives enables quick on‑site job loading and flexible workflow.
- Online Upgrade Capability All functions and processes can be updated online, ensuring long‑term reliability and worry‑free after‑sales support.

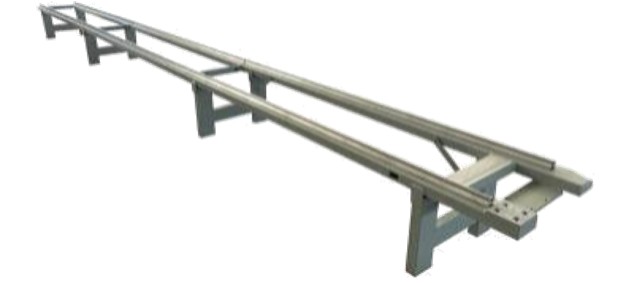

Portable Machine Body – Compact, Lightweight, Built for On‑Site Cutting
The 6010M laser tube cutter features a portable machine body engineered for mobility, easy transport, and reliable performance in field environments such as construction sites.
Key Features of the Portable Body Design
- High‑Strength Frame — Built using 100×50×3mm square pipes for durability and rigidity
- Compact & Lightweight — Small footprint and reduced weight make handling and setup effortless
- Three‑Section Split Structure — Body divides into three 2.2‑meter sections, simplifying transport and site access
- Construction‑Site Ready — Designed for stable operation even in outdoor or temporary work environments
Samples
Machine price
This machine can be ordered for AU$17,000+gst. Please contact us for details.
