6012MQ Laser Tube Cutter – Heavy‑Duty, High‑Precision Industrial Tube Cutting
The 6012MQ Laser Tube Cutter is a premium, heavy‑duty machine designed for fabrication workshops that demand maximum rigidity, long‑term accuracy, and high‑volume production capability. Built with a fully enclosed sheet‑metal body and a reinforced machine bed, the MQ series delivers exceptional stability and precision for continuous industrial use.
Why Choose the 6012MQ?
The MQ model is engineered for businesses that require:
- High‑precision tube cutting
- Long‑term structural stability
- Heavy‑duty pipe processing
- Industrial‑grade control systems
- Premium build quality
With a lifespan of 10+ years, the 6012MQ is built to withstand demanding workloads and maintain accuracy over time.
Key Features of the 6012MQ Laser Tube Cutter
1. Heavy‑Duty Machine Bed for Maximum Stability
The MQ series uses a reinforced, high‑rigidity machine bed designed to:
- Resist deformation during long‑term heavy‑pipe cutting
- Maintain precision for 10 years or more
- Support high‑power laser sources and large‑diameter pipes
This makes it ideal for workshops running continuous production shifts.
2. Fully Enclosed Sheet‑Metal Body
The 6012MQ features a premium, fully enclosed exterior:
- Enhanced structural strength
- Improved dust protection
- Cleaner workshop environment
- Professional, modern appearance
This enclosure also improves machine longevity and reduces maintenance.
3. Large Chuck Capacity – Up to 160mm
The MQ supports a 120mm chuck, allowing it to process:
- Larger round pipes
- Larger square and rectangular profiles
- Heavier‑wall materials
This makes it suitable for industries such as construction steelwork, machinery manufacturing, and heavy fabrication.
4. Industrial Control System (Shanghai Fangling)
The MQ uses the same advanced control system found in high‑end industrial machines:
- Programming‑free operation
- Built‑in graphics library
- USB file import
- Online system upgrades
- Stable, precise motion control
This ensures fast setup and consistent cutting accuracy.
5. High‑Precision Transmission System
The MQ is equipped with:
- Servo motors
- Precision gear racks
- Dual linear guide rails
Together, these components deliver:
- Smooth motion
- High repeatability
- Clean, accurate cuts
Even during long production runs.
6012MQ – Best Suited For
- Medium to large fabrication workshops
- High‑volume production environments
- Businesses cutting heavy pipes or large‑diameter tubes
- Companies requiring long‑term accuracy and industrial durability
- Buyers who want a premium, fully enclosed machine
6012MQ vs 6012MY – What’s the Difference?
| Feature | 6012MY | 6012MQ |
|---|---|---|
| Machine Bed | Medium‑duty | Heavy‑duty |
| Lifespan | ~8 years | ~10+ years |
| Chuck Size | 120mm | 120mm |
| Precision Over Time | Slight decline with heavy pipes | Maintains precision long‑term |
| Exterior | Semi‑open | Fully enclosed sheet‑metal |
| Price | Lower | Higher |
| Best For | Medium‑duty workshops | High‑volume industrial production |
operating system
6012MQ laser tube cutter using a 32-bit high-performance CPU and an ultra-large-scale programmable device FPGA, combined with real-time multi-task control technology and hardware interpolation technology, the system operates with high stability; the overall process structure is reasonable, and it is combined with fully optically isolated control, featuring extremely strong anti-interference capability;
256M of extremely large processing file storage space, capable of accommodating the operation and processing of various complex programs, and easily handling the operation of large programs;
Using ARM7 processor technology, the program running speed and interface refresh speed are faster;
Arc detection, initial positioning, corner signal control functions;
Graphic library function: contains a 24-type graphic (expandable and customizable) part library, including commonly used basic processing parts;
Graphic processing function, for the processed graphics, it has the functions of layout, rotation, X and Y mirroring; arbitrary section selection and hole selection point processing functions;
Has seam compensation function, and detects whether the compensation in the program is reasonable, making a corresponding report for user selection;
File names can display Chinese names, facilitating users to intuitively identify the content of the stored files;
Breakpoint recovery, automatic power-off recovery function, automatic memory of breakpoints;
Backward, section selection, breakpoint recovery, during which users can freely select the hole position and delay, preheating, hole processing functions, greatly facilitating user operation;
USB interface, direct file reading function of USB, convenient on-site operation.
Equipment Configuration List
| No. | item | standard layout | Note |
|---|---|---|---|
| 1 | laser generator | Raycus CE | a set |
| 2 | laser head | Ospri | a set |
| 3 | water chiller | S&A | a set |
| 4 | CNC control system | Shanghai Fangling | a set |
| 5 | relay | Schneider Electric | a set |
| 6 | lathe bed | Xin’er | a set |
| 6000（mm） | |||
| 7 | ball screw | Taiwan TBI | a set |
| 8 | Precision reducer | XinBao | 3 sets |
| 9 | track | Square track | a set |
| 10 | pneumatic system | Japan SMC | a set |
| 11 | Electrical components | France Schneide | a set |
| 12 | Servo motor and driver | HeChuan | a set |
| 13 | workbench | Xin’er | The front end of the fuselage |
| 14 | rack | helical tooth | a set |
| 15 | Front chuck and rear chuck pneumatic | Xin’er | 120mm |
Equipment technical parameters
| MODEL | 6012MQ | UNIT |
|---|---|---|
| Pipe processing dimensions | 10≤diemeter≤120，L≤6000； | mm |
| X-axis travel | 200 | mm |
| Y-axis travel | 6500 | mm |
| Z-axis travel | 120 | mm |
| X and Y axis positioning accuracy | ±0.05/1000mm | mm |
| Repeatability of positioning along the X and Y axes | ±0.03 | mm |
| accelerated speed | 1G | m/s² |
| Maximum running speed of the Y-axis | 60 | m/min |
| Maximum rotational speed of the chuck | 60 | r/min |
| Tail piece length | 50 | mm |
| Overall machine power | 12 | KW |
| power supply requirement | 220 | V |
Note: The achievable accuracy of the workpiece is to some extent dependent on factors such as the type of workpiece, pre-treatment conditions, pipe material size, and the position of the pipe within the working area.
Note: If any of the above parameters change, no notice will be given. The final technical parameters shall be subject to the actual order agreement.
Equipment technical parameters
Bed frames used for 6012MQ laser tube cutter are all independently developed and processed as a whole. The bed frames designed based on the principle of structural dynamic design and the variable analysis technology of finite element method possess excellent dynamic and static characteristics.
They are made by welding high-quality materials and undergo rough processing, secondary vibration aging treatment, and precision processing with large gantry lathes.
This ensures that the guide rail surfaces and rack surfaces are processed into one piece, guaranteeing accuracy.
These design and processing methods ensure that the machine tools have excellent seismic resistance, high rigidity and stability, good toughness, light weight, corrosion resistance, oxidation resistance, and high processing speed.

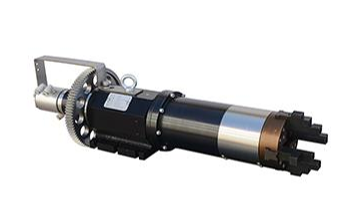

The Xin’er Laser Chuck R&D team adheres to independent innovation. With strong R&D capabilities, they have obtained multiple patents and possess complete independent intellectual property rights. Their products have a wide range of gradations and are more suitable for pipe cutting machine applications compared to other manufacturers.
Performance advantages: It has stronger capabilities, with a round pipe diameter or square pipe edge length of no more than 120mm, suitable for processing various types of pipe materials; precision screw drive, stronger power, and higher efficiency. The front chuck can be moved to avoid the cutting head, and in the case of two chuck discs, it can achieve ultra-short tail material cutting.

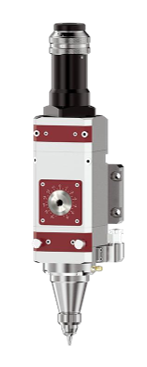

Laser cutting head
The internal structure is completely sealed to prevent the optical part from being contaminated.
The imported motor is used for driving, resulting in high perforation efficiency.
The focusing protection window is an independent module, which is easy to replace.
The laser cutting head is equipped with an adaptive optical system, enabling automatic adjustment of the focus or the size of the light spot, ensuring the consistency of the cutting quality throughout the processing range.
The cutting protection mirror is resistant to gas and oil contamination, extending the service life.
The three protective mirrors are sealed to prevent dust. During the cutting process, if the cutting head collides, the machine will automatically stop

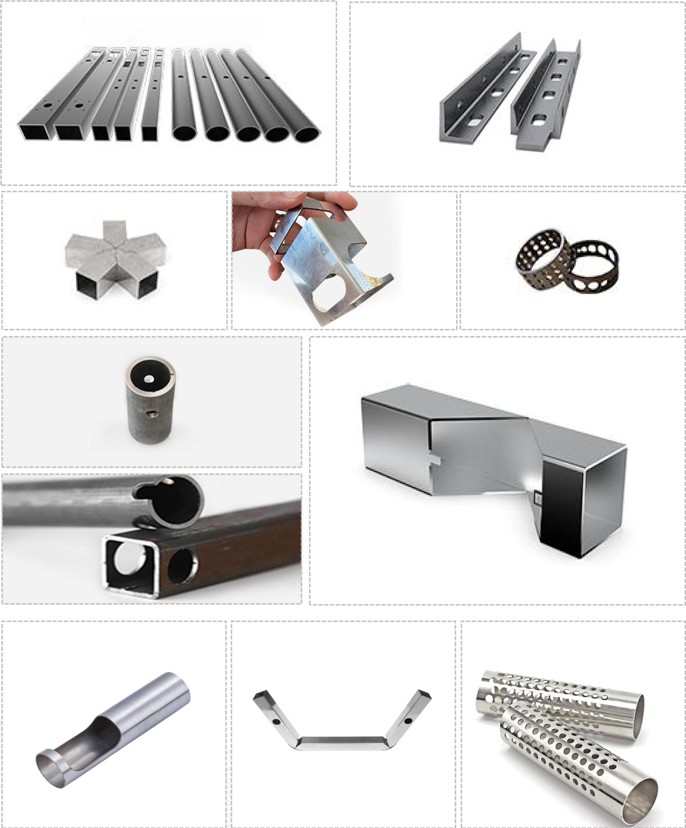

Cutting samples
Summary
The 6012MQ Laser Tube Cutter is a heavy‑duty industrial tube cutting machine designed for workshops that require maximum rigidity, long‑term precision, and high‑volume production capability. With a 160mm chuck, reinforced machine bed, fully enclosed sheet‑metal body, and industrial control system, the MQ series delivers superior performance and durability compared to mid‑range models. It is the ideal choice for fabrication companies seeking a premium, long‑lasting laser tube cutting solution.
Machine price
This machine can be ordered for AU$33,500+gst. Please contact us for details.
