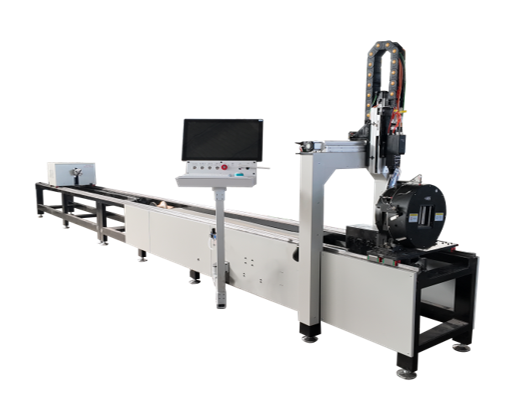

6012MY Laser Tube Cutter – Economic Mid‑Size Tube Cutting Solution
The 6012MY Laser Tube Cutter is designed as a smart middle‑tier option between the portable 6010M and the heavy‑duty 6012MQ. It delivers the cutting capacity and industrial control system of the MQ series, but with a more economical machine bed and simplified structure — making it ideal for workshops that need precision, efficiency, and affordability.
Why Choose the 6012MY?
The 6012MY is built for businesses that want MQ‑level performance without the MQ‑level price. It offers:
- Industrial‑grade cutting performance
- Medium‑duty machine bed suitable for long‑term use
- 120mm chuck capacity — ideal for most fabrication jobs
- Lower cost of ownership compared to MQ
- Same control system as MQ for stable and accurate operation
It is the perfect balance of performance, durability, and price.
Quick profile cutting on 6012MY laser tube cutter
Positioning: Where the 6012MY Fits in the Range
Compared to 6010M
- Larger pipe capacity
- Stronger frame
- Higher precision
- Designed for workshops, not construction sites
Compared to 6012MQ
- Same cutting parameters
- Same industrial control system
- More economical
- Lighter machine bed (8‑year lifespan vs 10‑year MQ lifespan)
- Supports 120mm chuck (MQ supports 160mm)
- Slight long‑term deformation possible when cutting heavy pipes continuously
Application
- Small to medium fabrication workshops
- Businesses upgrading from portable machines
- Buyers who want MQ‑level performance at a lower price
- Users who cut light‑to‑medium wall pipes regularly
Key Features of the 6012MY Laser Tube Cutter
1. Industrial Control System (Same as MQ Series)
The MY uses the same Shanghai Fangling industrial control system, offering:
- Programming‑free operation
- Built‑in graphics library
- USB file import
- Online upgrade support
This ensures stable, accurate, and user‑friendly cutting performance.
2. Medium‑Duty Machine Bed – Strong but Economical
The 6012MY uses a reinforced but lighter bed structure, designed to:
- Maintain accuracy for 8+ years
- Handle 120mm chuck size
- Support medium‑duty production workloads
It is not as heavy or rigid as the MQ bed, but it provides excellent value for workshops that do not cut heavy pipes continuously.
3. Cutting Capacity & Performance
- Round pipe: up to 120mm
- Square/rectangular pipe: mid‑size range
- High‑precision servo drive system
- Stable cutting for mild steel, stainless steel, aluminium, etc.
- Suitable for 1kW–3kW laser sources (depending on configuration)
4. Cost‑Effective Workshop Solution
The MY model is designed for buyers who want:
- MQ‑level cutting performance
- MQ‑level control system
- MQ‑level accuracy (initially)
- But at a significantly lower price
It is the best value for workshops that do not require the full rigidity and 10‑year lifespan of the MQ bed.
6012MY vs 6012MQ – Quick Comparison
| Feature | 6012MY | 6012MQ |
|---|---|---|
| Machine Bed | Medium‑duty | Heavy‑duty |
| Lifespan | ~8 years | ~10 years |
| Chuck Size | 120mm | 160mm |
| Precision Over Time | Slight decline with heavy pipes | Maintains precision long‑term |
| Control System | Industrial (same as MQ) | Industrial |
| Price | Lower | Higher |
| Best For | Medium‑duty workshops | High‑volume production |
Device configuration list:
| No. | item | standard layout |
|---|---|---|
| 1 | laser generator | Raycus CE |
| 2 | laser head | Ospri |
| 3 | water chiller | S&A |
| 4 | CNC control system | Shanghai Fangling |
| 5 | relay | Schneider Electric |
| 6 | motor drive | SERVO |
| No. | item | technical specification |
|---|---|---|
| 1 | Effective cutting pipe diameter | round tube 15-120mm ； |
| rectangular tube/square tube15-120 mm | ||
| 2 | cutting thickness | 3mm（determined by the material and the power of the laser） |
| 3 | Effective cutting length of the pipe material | 6000 mm |
| 4 | Cutting accuracy error | ±0.5 mm |
| 5 | cutting speed | square tube 0-7000mm/min； |
| round tube 0-8000mm/min | ||
| 6 | Reset accuracy | ±0.05mm |
| 7 | size of device | 7500 mm*800 mm*1100 mm（kind prevail） |
| 8 | installation (unit) weight | kind prevail |
| 9 | supply voltage | 220 V |
| 10 | working gas | air |
| 11 | drive mode | cremaillere |
| 12 | track | Square rail |
| 13 | chuck assembly | Front and rear pneumatic chuck, chuck out-of-position |
| 14 | Loading method | Manual loading – Automatic feeding and cutting |
| 15 | Tail piece length | 50mm |
Summary
The 6012MY Laser Tube Cutter is an economic mid‑size tube cutting machine designed for workshops that need industrial‑grade performance without the cost of a heavy‑duty MQ machine. With a 120mm chuck capacity, industrial control system, and 8‑year structural lifespan, it is ideal for medium‑volume production, fabrication shops, and businesses upgrading from portable models. The MY delivers the same cutting parameters as the MQ, but with a more affordable machine bed and simplified exterior design.
Machine price
This machine can be ordered for AU$27,000+gst. Please contact us for details.
